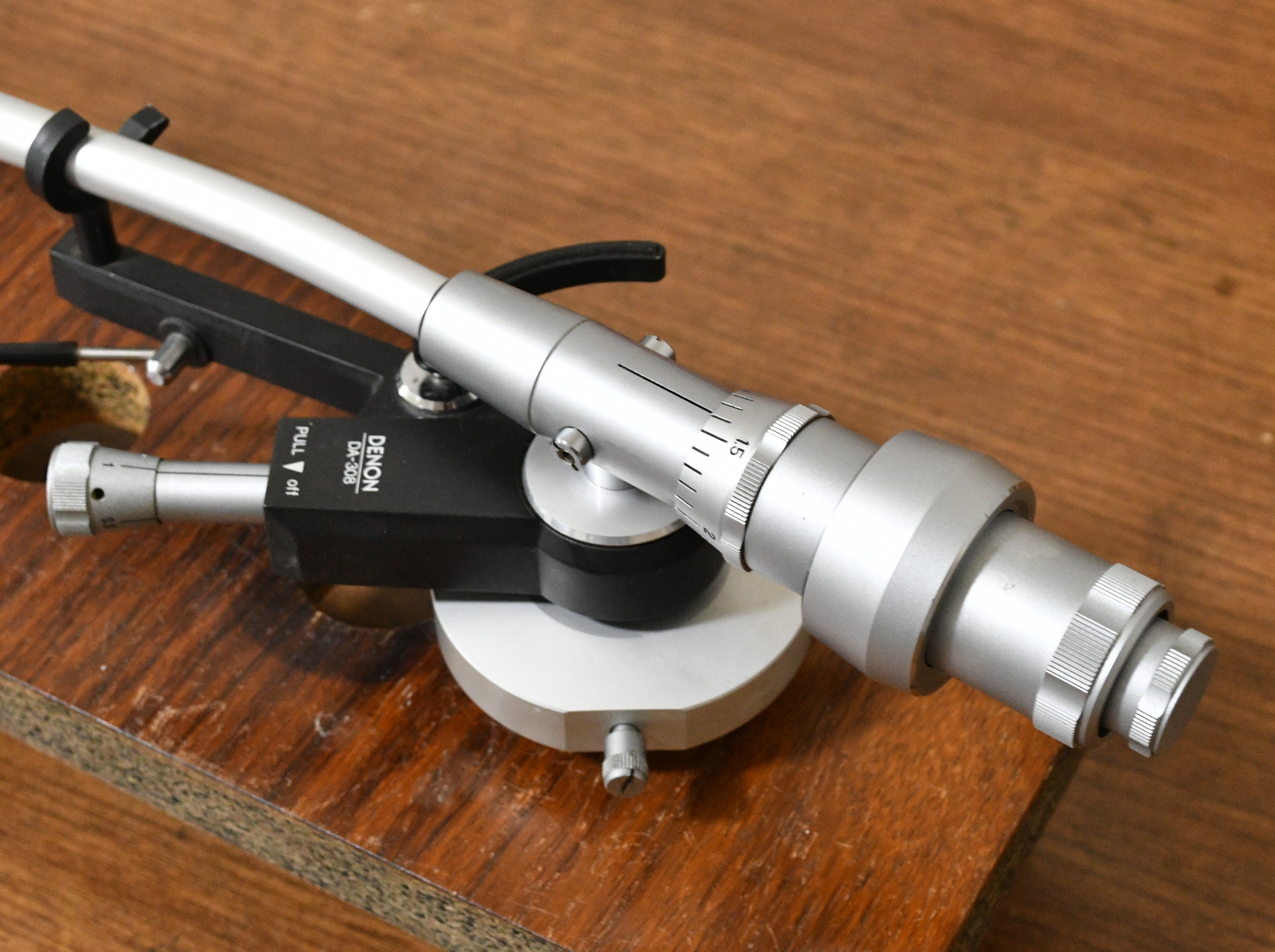

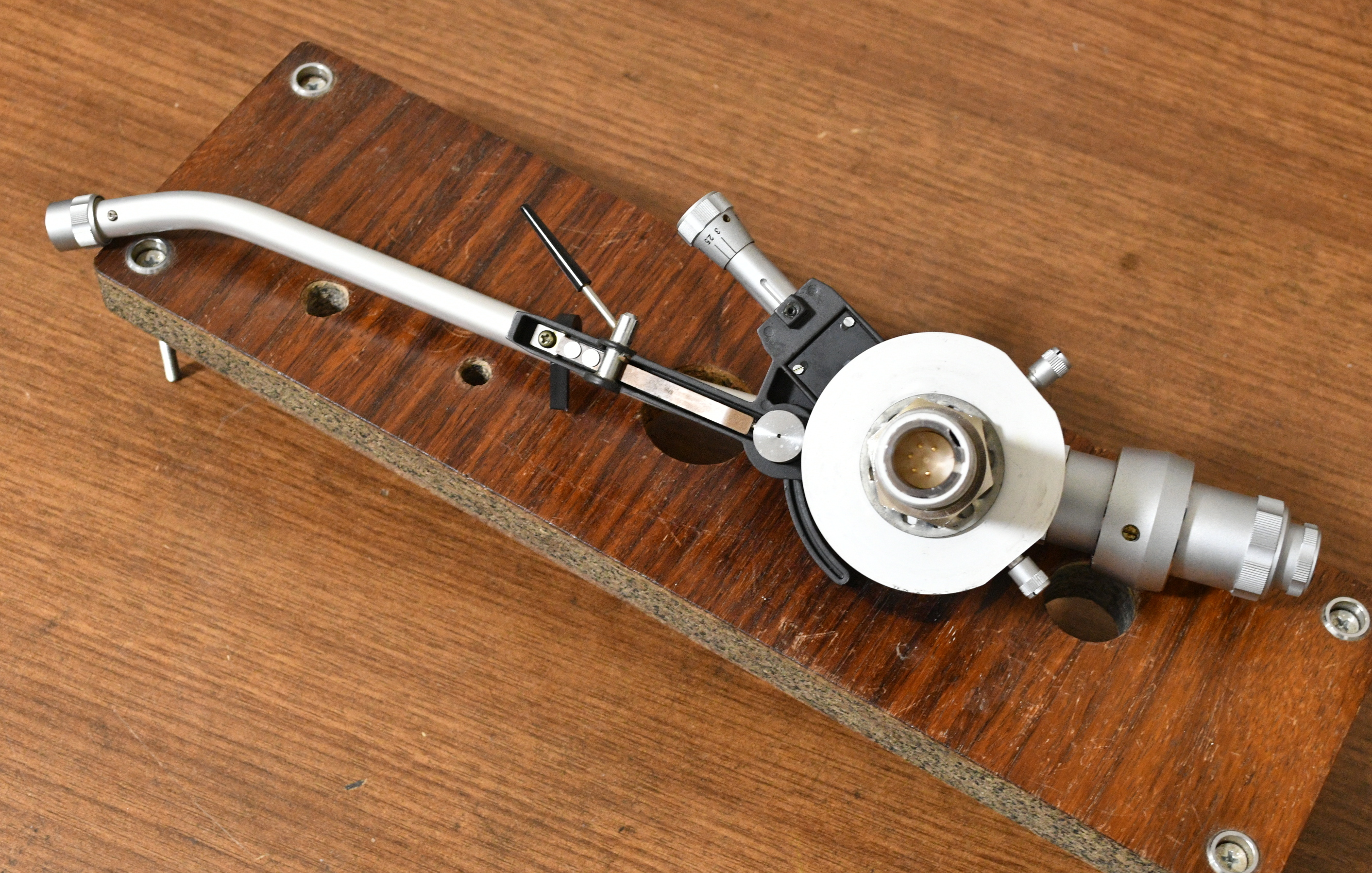

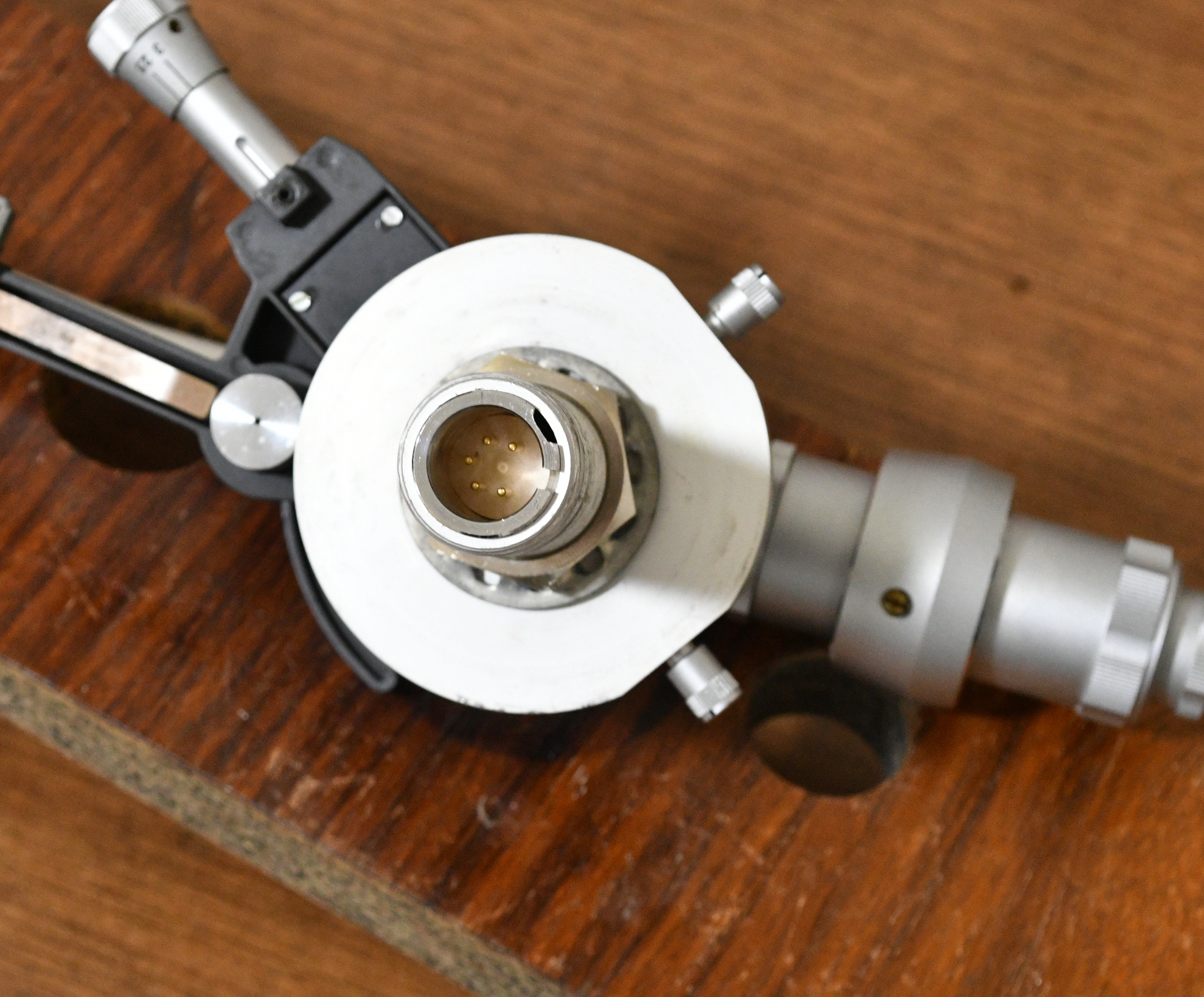

Denon DA-308 12inches long tonearm for professional with original sub weight
Denon DA-308 12inches long tonearm for professional with original sub weight.
Very very rare long version tonearm of DENON, it is really hard to get even in Japan market.
Specification:
A tonearm designed to always deliver the best performance for studio use.
The DA-308 is a long tonearm with a total length of 38 cm (effective length 28.2 cm), which reduces tracking error by 20%.
A dynamic damping mechanism is used to suppress the effects of arm noise and feedback.
This method is structured by inserting a damper rubber with appropriate viscosity between the body and pipe of the tonearm. This effectively improves vibration problems that were previously difficult to solve.
The dynamic damping method is less susceptible to vibration noise transmitted from the player's cabinet, etc., and reduces coloring of the playback sound of the cartridge used, bringing out the character of the cartridge itself. In addition, it has an effective filtering effect against sound pressure from speakers, etc., reducing the inherent vibration of each part that makes up the tonearm. Speaker
Equipped with a non-contact inside force canceller.
This mechanism cancels the inside force by changing the suction force according to the distance between the rotating drum and the magnet. Since this method is a non-contact structure, it does not impair the performance of the tonearm, and can follow the change in inside force due to the needle position of the record-shaped cartridge, so the appropriate amount of outside force can be obtained.
In addition, the cancel function can be turned off with one touch, so there is no problem when adjusting the zero balance.
A new vernier dial type is used for stylus pressure adjustment.
A high-grade miniature ball bearing is used for the horizontal rotating bearing of the rotating bearing section, achieving high sensitivity and high reliability over a long period of time. In addition, an angular miniature bearing and a pivot that has been hardened and polished are used for the vertical moving part, achieving high sensitivity and stability.
The bearing section is also protected by a special elastic body to reduce the effects of external vibration.
The sub-counterweight is equipped to support the installation of heavy-weight cartridges.
The connection part with the cartridge uses gold-plated terminals to improve reliability.
Type Dynamic damping, static balance S-shape
Total length 380mm
Effective length 282mm
Offset angle 18°
Overhang 12.5mm
Tracking error Maximum 2.0°
Stylus pressure adjustment range 0-2.5g per rotation, 0.1g step
Compatible cartridge weight range
(including shell) Without sub-weight: approx. 14-24g
With sub-weight: approx. 24-34g
Included head shell PCL-7
Head shell weight 8.5g
Height adjustment range 42-70mm (from arm board to center of pipe)
Applicable board thickness 5-30mm, washer φ33mm
Very very rare long version tonearm of DENON, it is really hard to get even in Japan market.
Specification:
A tonearm designed to always deliver the best performance for studio use.
The DA-308 is a long tonearm with a total length of 38 cm (effective length 28.2 cm), which reduces tracking error by 20%.
A dynamic damping mechanism is used to suppress the effects of arm noise and feedback.
This method is structured by inserting a damper rubber with appropriate viscosity between the body and pipe of the tonearm. This effectively improves vibration problems that were previously difficult to solve.
The dynamic damping method is less susceptible to vibration noise transmitted from the player's cabinet, etc., and reduces coloring of the playback sound of the cartridge used, bringing out the character of the cartridge itself. In addition, it has an effective filtering effect against sound pressure from speakers, etc., reducing the inherent vibration of each part that makes up the tonearm. Speaker
Equipped with a non-contact inside force canceller.
This mechanism cancels the inside force by changing the suction force according to the distance between the rotating drum and the magnet. Since this method is a non-contact structure, it does not impair the performance of the tonearm, and can follow the change in inside force due to the needle position of the record-shaped cartridge, so the appropriate amount of outside force can be obtained.
In addition, the cancel function can be turned off with one touch, so there is no problem when adjusting the zero balance.
A new vernier dial type is used for stylus pressure adjustment.
A high-grade miniature ball bearing is used for the horizontal rotating bearing of the rotating bearing section, achieving high sensitivity and high reliability over a long period of time. In addition, an angular miniature bearing and a pivot that has been hardened and polished are used for the vertical moving part, achieving high sensitivity and stability.
The bearing section is also protected by a special elastic body to reduce the effects of external vibration.
The sub-counterweight is equipped to support the installation of heavy-weight cartridges.
The connection part with the cartridge uses gold-plated terminals to improve reliability.
Type Dynamic damping, static balance S-shape
Total length 380mm
Effective length 282mm
Offset angle 18°
Overhang 12.5mm
Tracking error Maximum 2.0°
Stylus pressure adjustment range 0-2.5g per rotation, 0.1g step
Compatible cartridge weight range
(including shell) Without sub-weight: approx. 14-24g
With sub-weight: approx. 24-34g
Included head shell PCL-7
Head shell weight 8.5g
Height adjustment range 42-70mm (from arm board to center of pipe)
Applicable board thickness 5-30mm, washer φ33mm
$495.00
