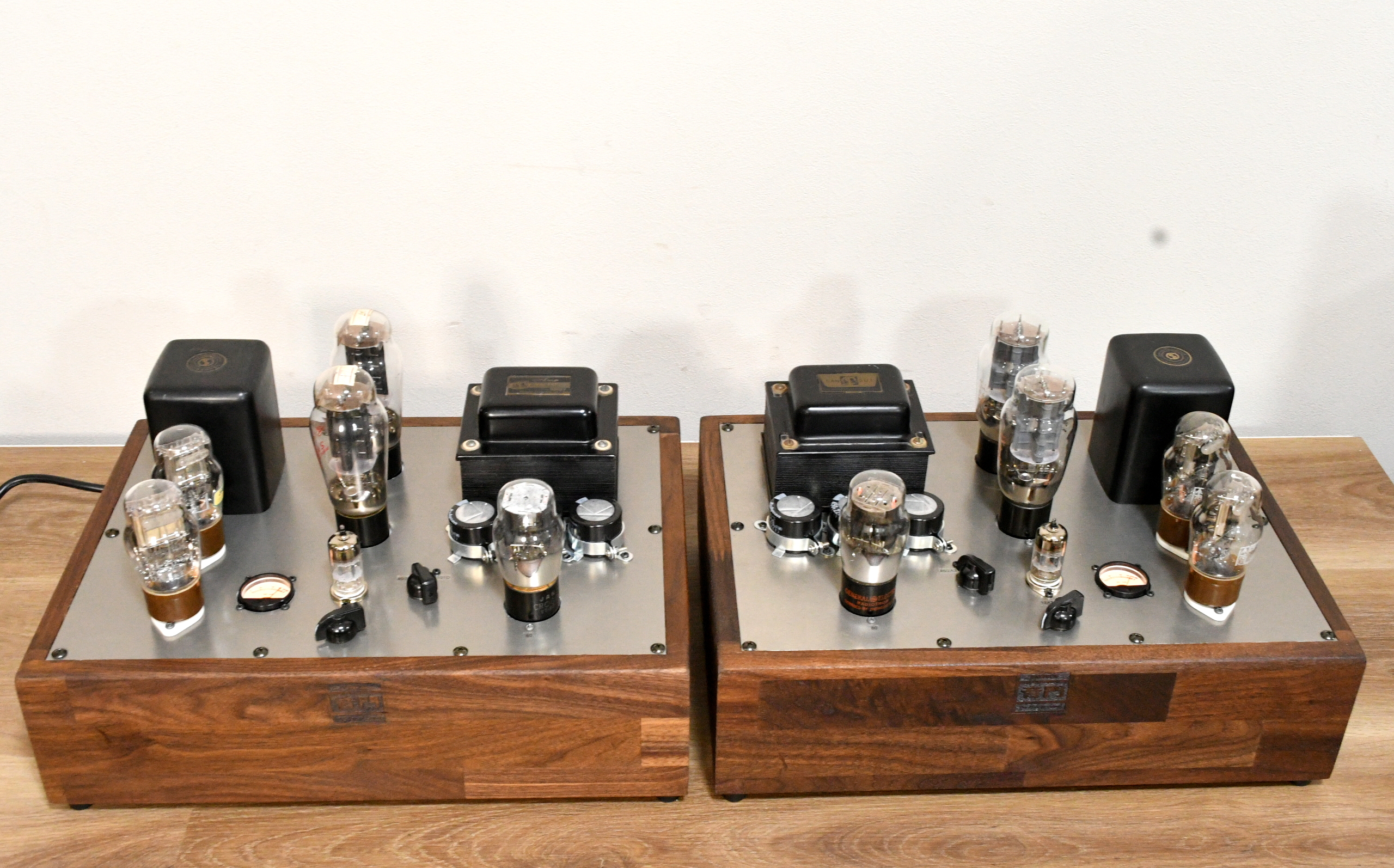

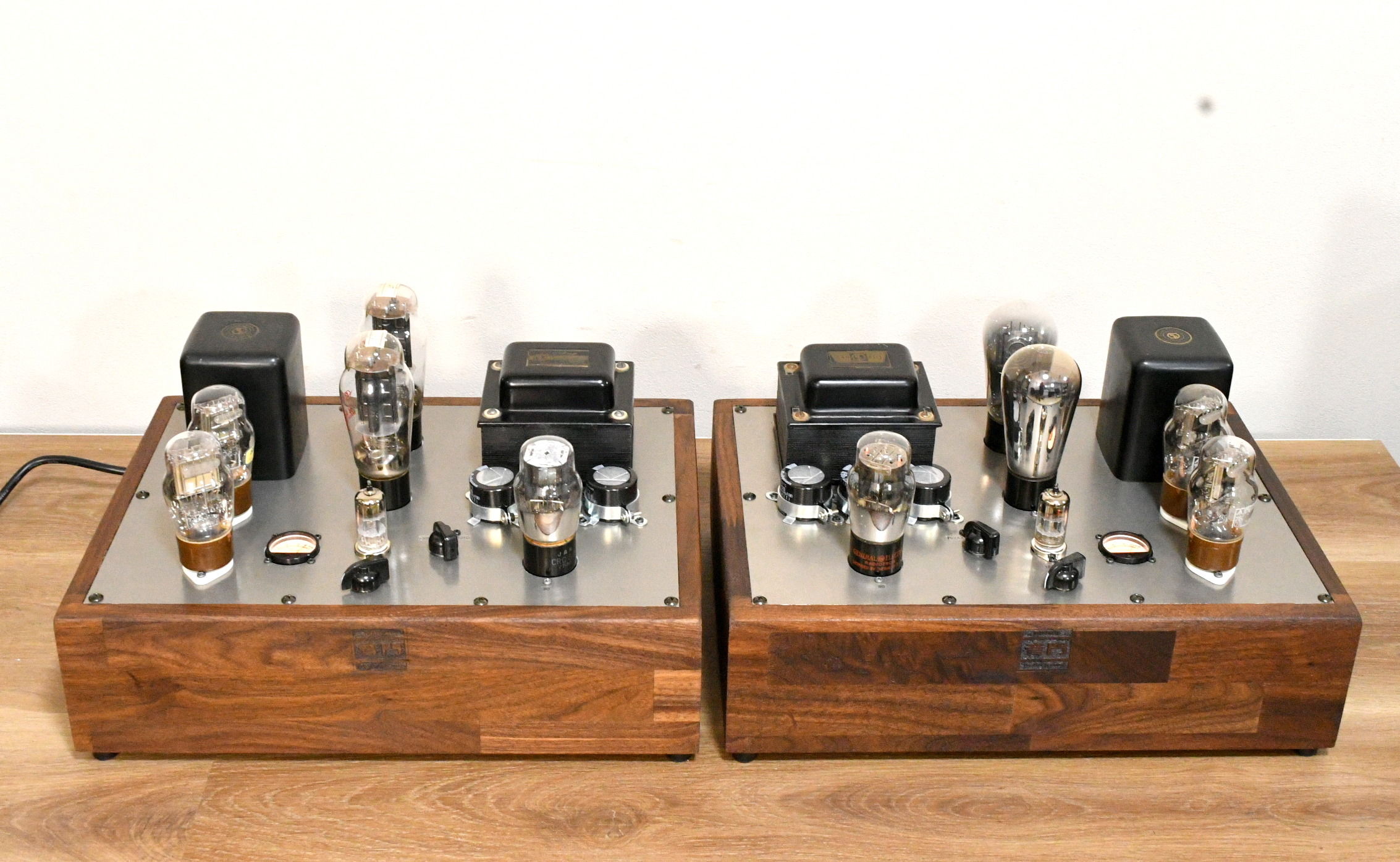

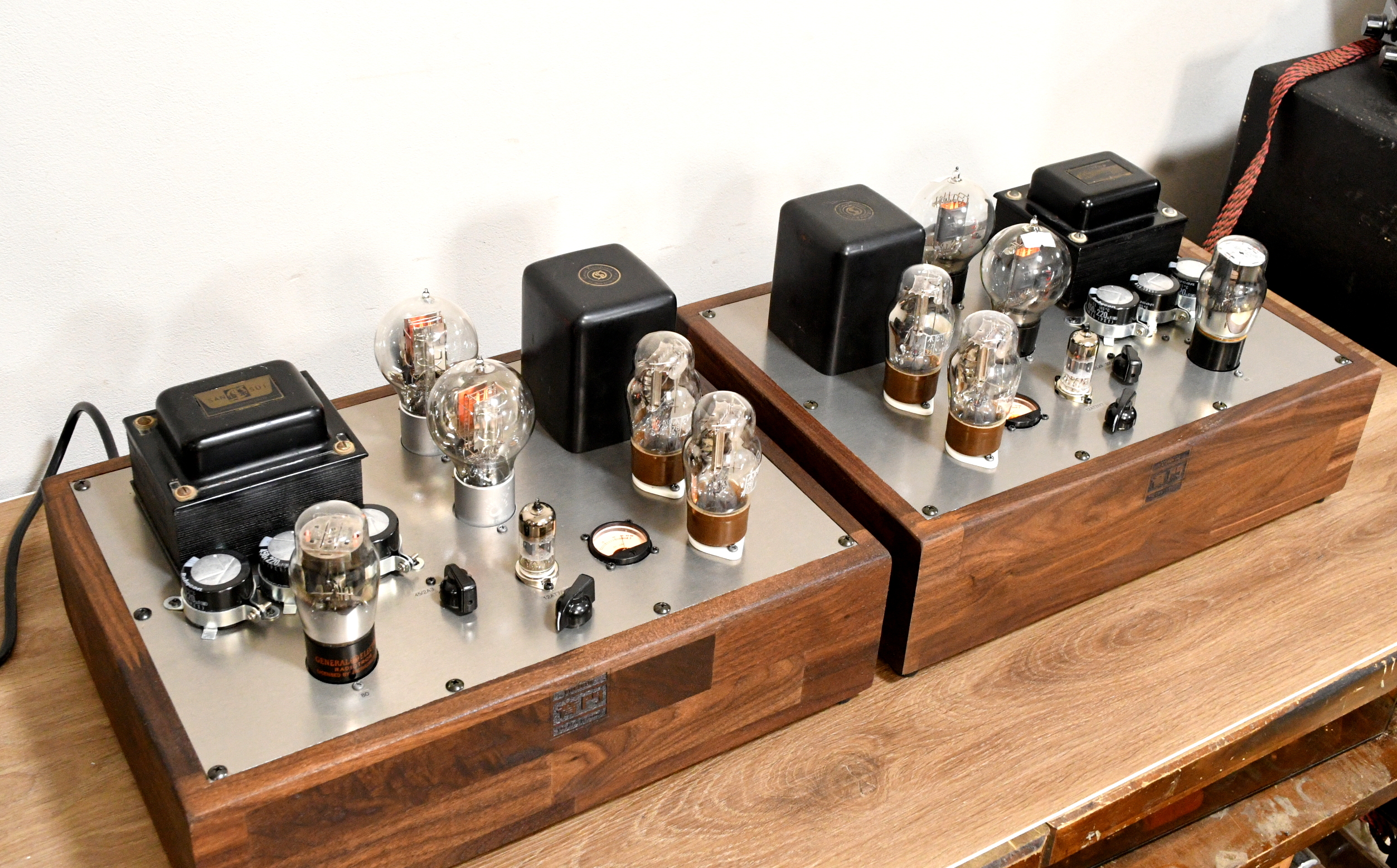

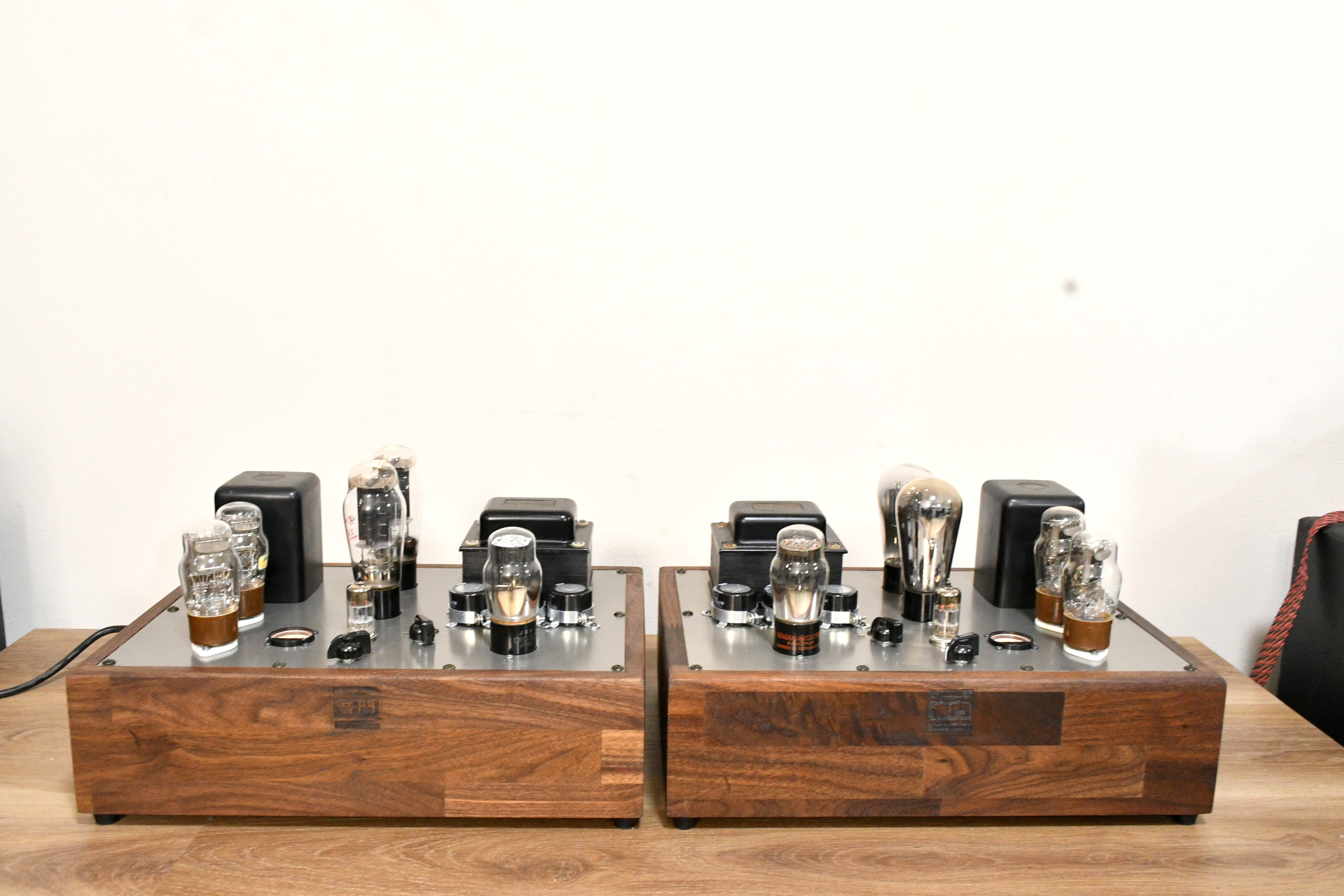

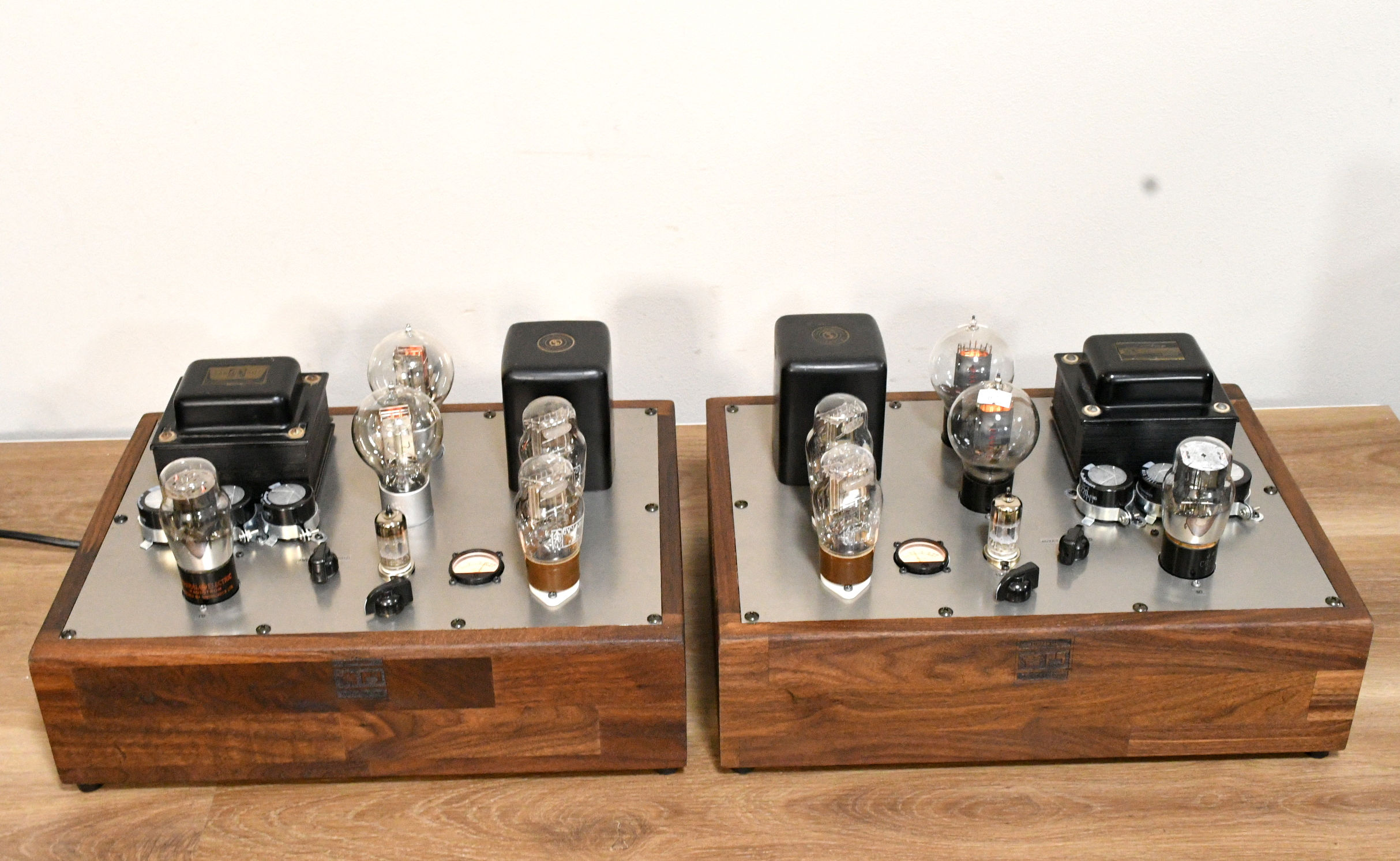

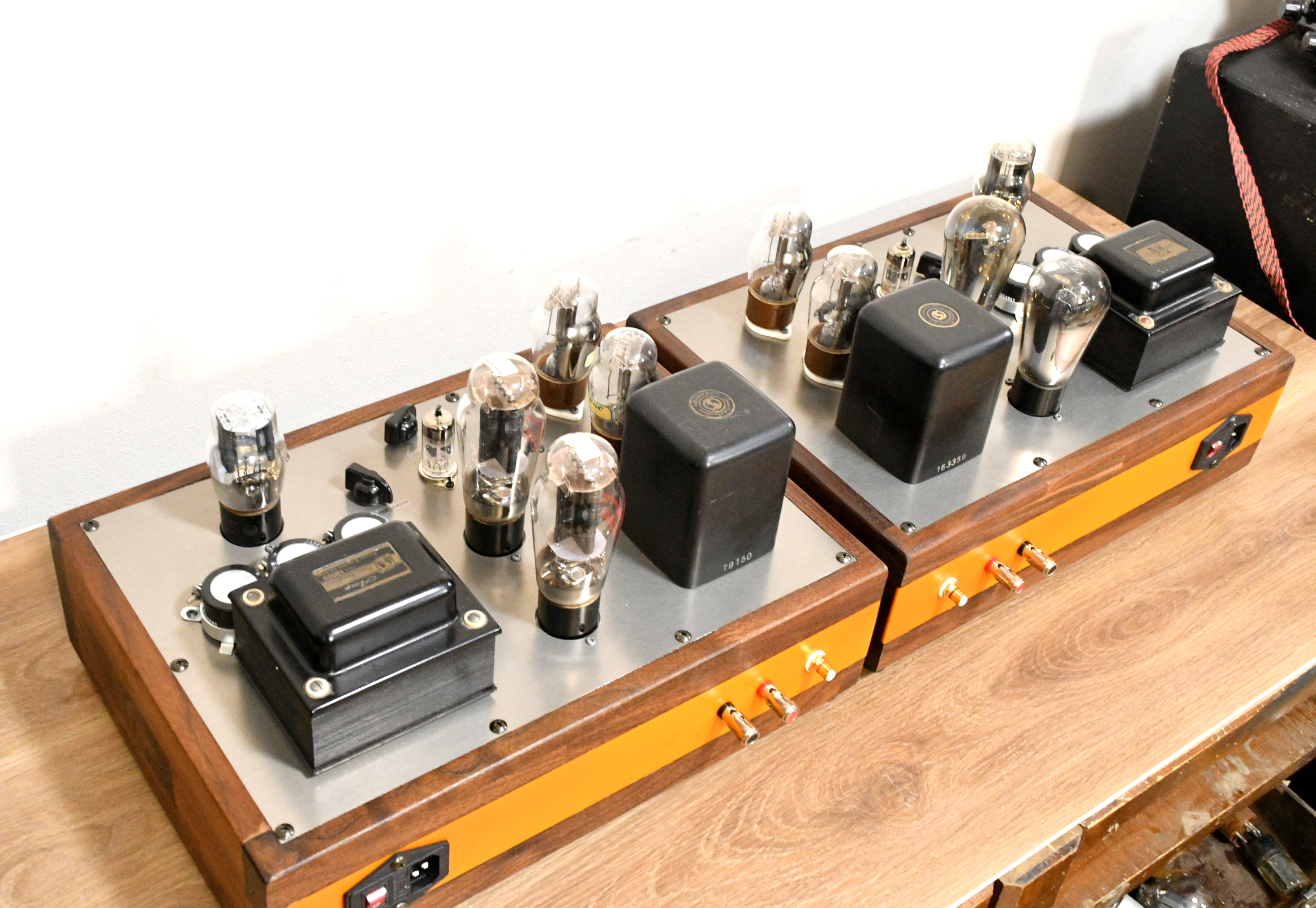

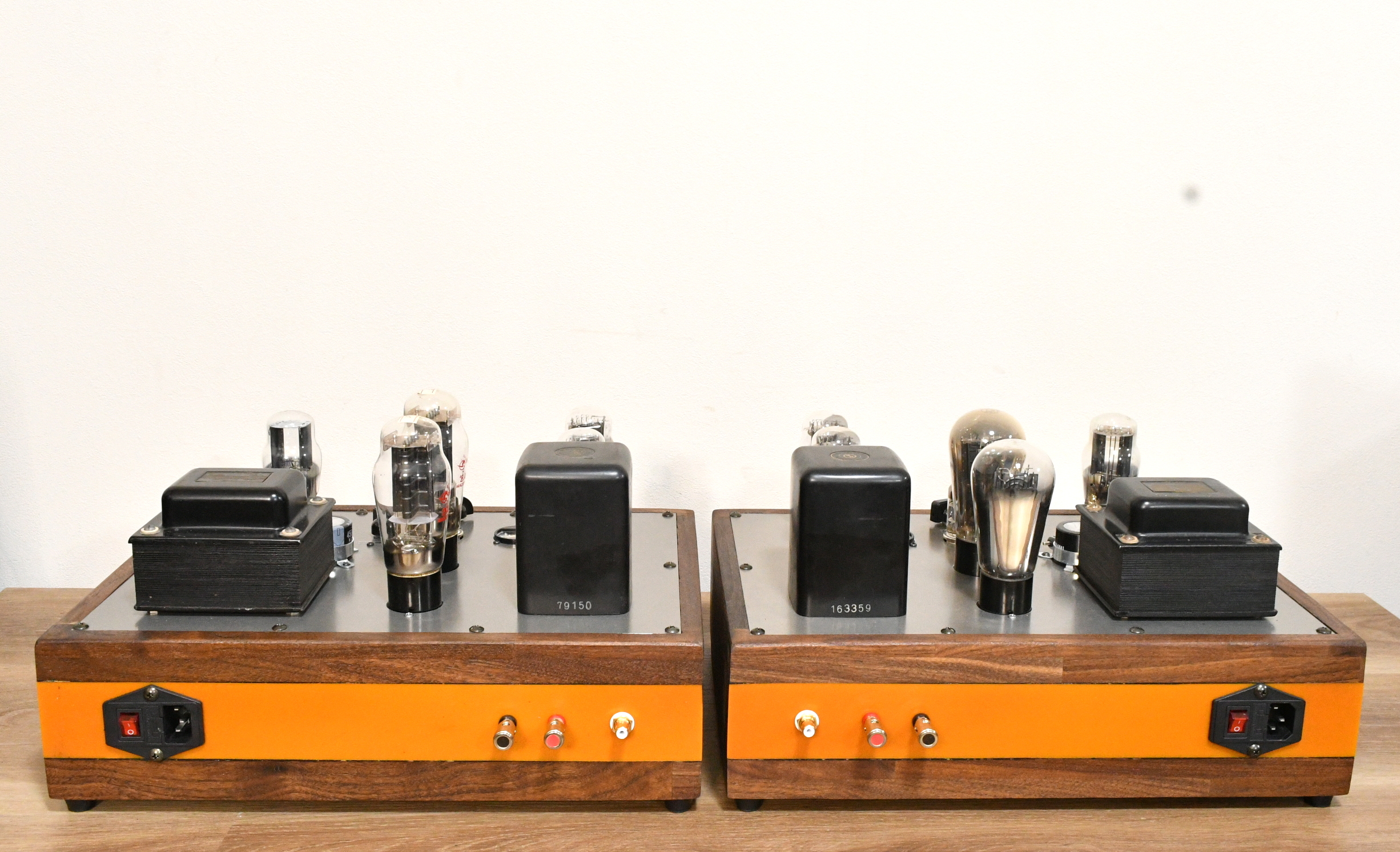

OTOMON LAB 101D/205D/2A3/45 compatible PP monoblock tube amplifier drive stage 101/71A (O.U.D.D.C)
OTOMON LAB 101D/205D/2A3/45 compatible PP monoblock tube amplifier drive stage 101/71A (O.U.D.D.C). Heater for output tubes is AC heater.
You can order using specific transformer.
Very little NFB was adopted (-3db), for better performance, you can remove it if you want.
Max output power for 2A3/45 tube is 12W/channel (THD:5%), Ouput power for 205D is 5W and 101D is about 1.5W
This is order made product that adopt new circuit O.U.D.D.C, and the result is really amazing.
Prestage tube is 12AT7(12AY7, 12AU7), driving tube is LS-7, CV1660.
You can order using specific transformer.
Very little NFB was adopted (-3db), for better performance, you can remove it if you want.
Max output power for 2A3/45 tube is 12W/channel (THD:5%), Ouput power for 205D is 5W and 101D is about 1.5W
This is order made product that adopt new circuit O.U.D.D.C, and the result is really amazing.
Prestage tube is 12AT7(12AY7, 12AU7), driving tube is LS-7, CV1660.
No tubes are included. This amplifier is working in class A.
Sound is very warm, dark and detail. Specification
Response frequency : 25Hz ~ 45KHz Hum level: 0.3mV
THD : 5% 12W/channel(2A3/45)
Sound is very warm, dark and detail. Specification
Response frequency : 25Hz ~ 45KHz Hum level: 0.3mV
THD : 5% 12W/channel(2A3/45)
$2,950.00
