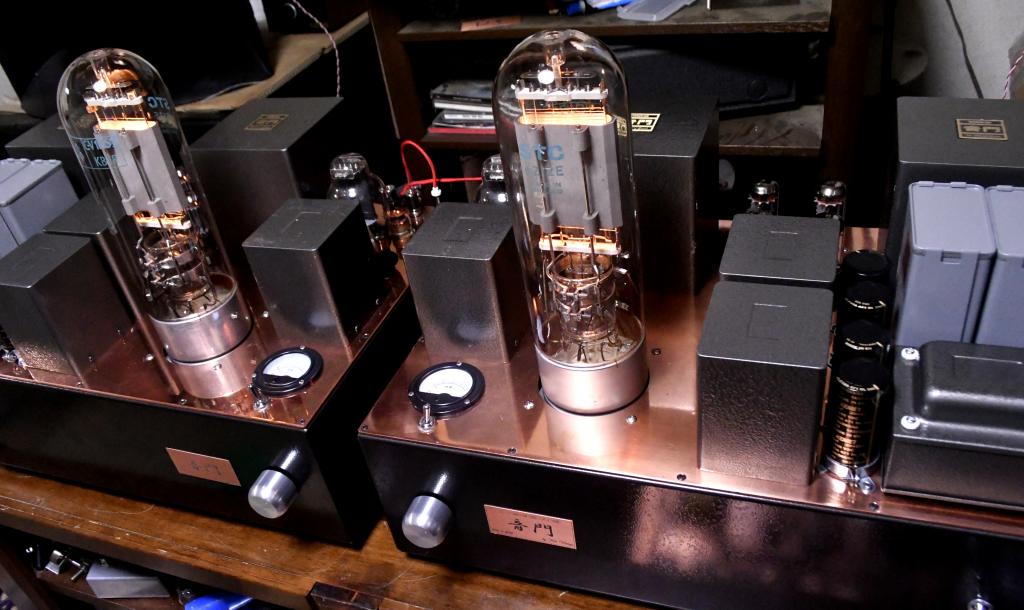

【OTOMON LAB】 300B drive 212 SE amplifier class A 40W @ 8ohm

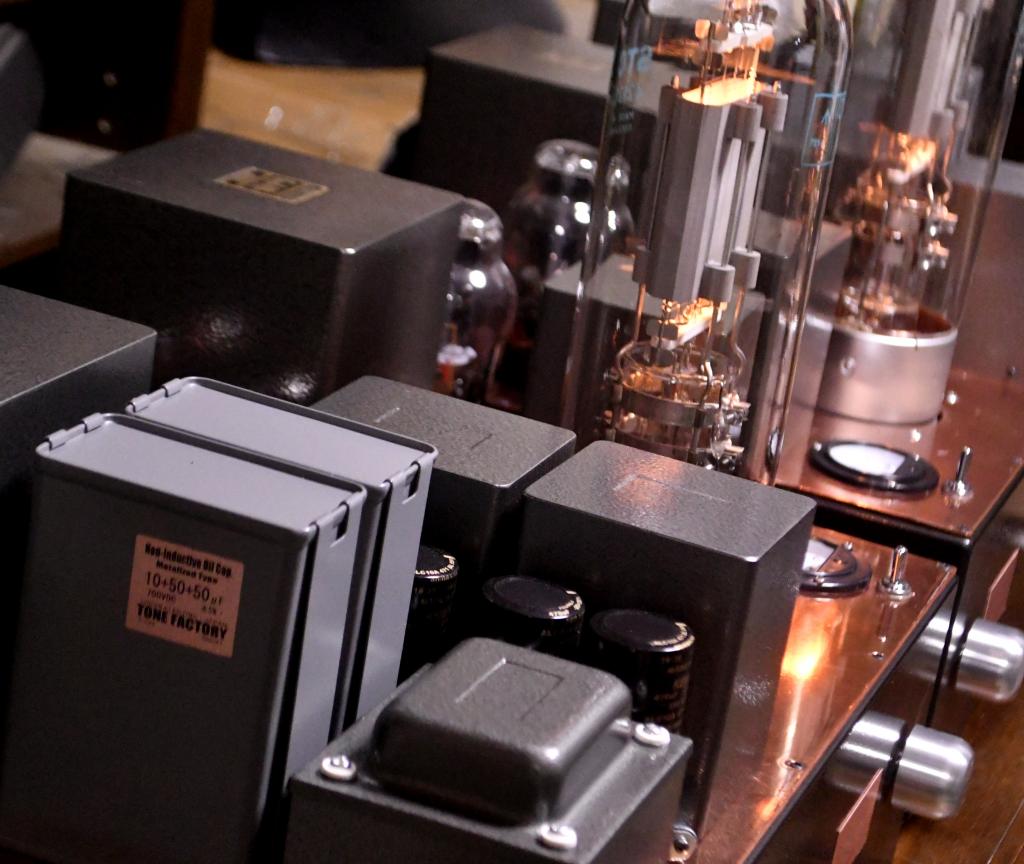

The power monster 4212 tube amplifier, drive tube is 300B, input tube is 12AY7. All transformer are special order made, orient cut core.
4212 is the biggest tube using for audio, it is 2 times bigger than the king tube 211. Output for class A is 40W, which is impossible for almost tube. It is not transmission tube, it is tube using for audio.
Sound is very rich, powerful and detail. Price does not include tubes.
One block is about 50kg.
Specification: ( No NFB)
Response frequency: 16Hz ~ 40KHz(+-0db) 10Hz~85KHz(-1db)
Output is about 40W/channel. (input 0.75Vrms)
Hum level : 0.7mV
Total harmonic distortion: 0.08% 1W 8ohm
Consumption : 320W
4212 is the biggest tube using for audio, it is 2 times bigger than the king tube 211. Output for class A is 40W, which is impossible for almost tube. It is not transmission tube, it is tube using for audio.
Sound is very rich, powerful and detail. Price does not include tubes.
One block is about 50kg.
Specification: ( No NFB)
Response frequency: 16Hz ~ 40KHz(+-0db) 10Hz~85KHz(-1db)
Output is about 40W/channel. (input 0.75Vrms)
Hum level : 0.7mV
Total harmonic distortion: 0.08% 1W 8ohm
Consumption : 320W
$16,000.00
