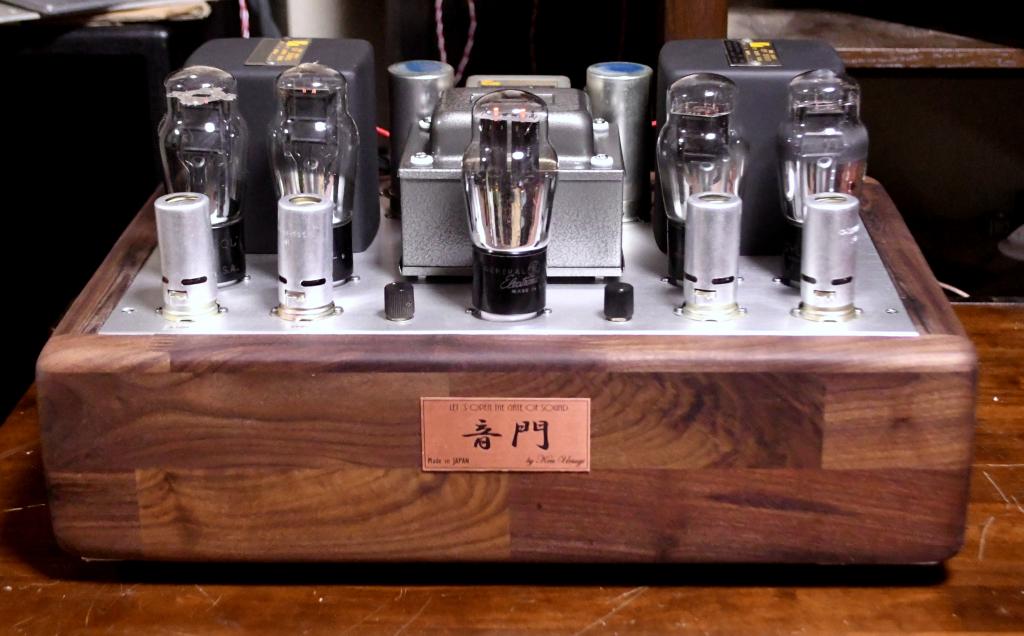

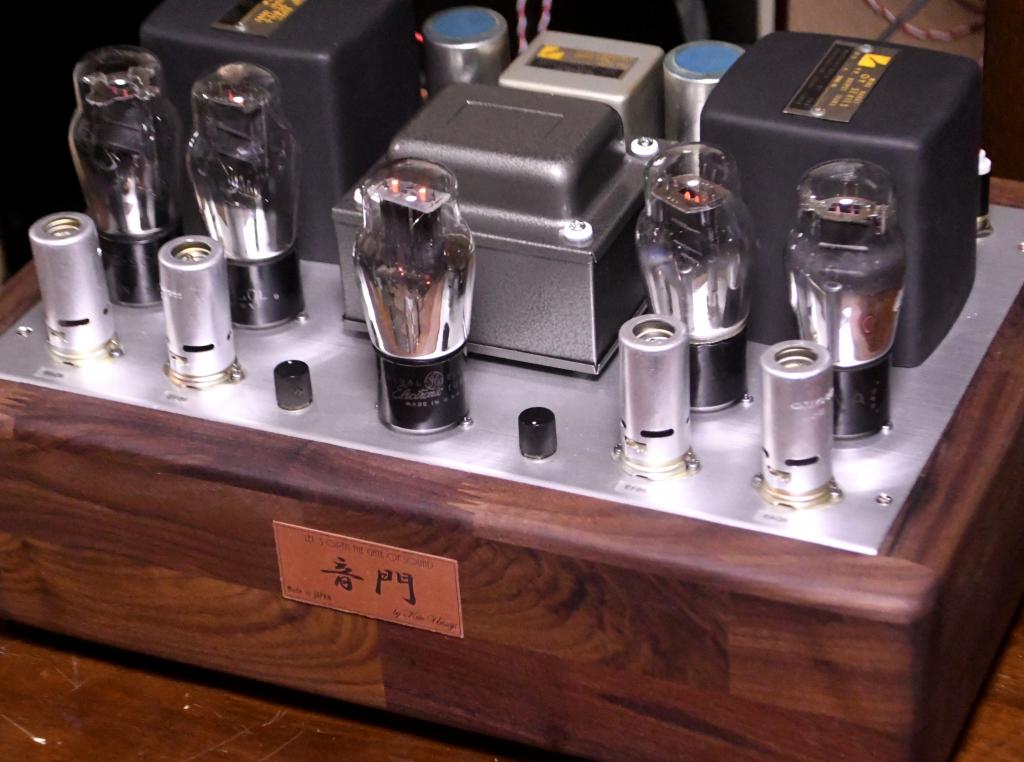

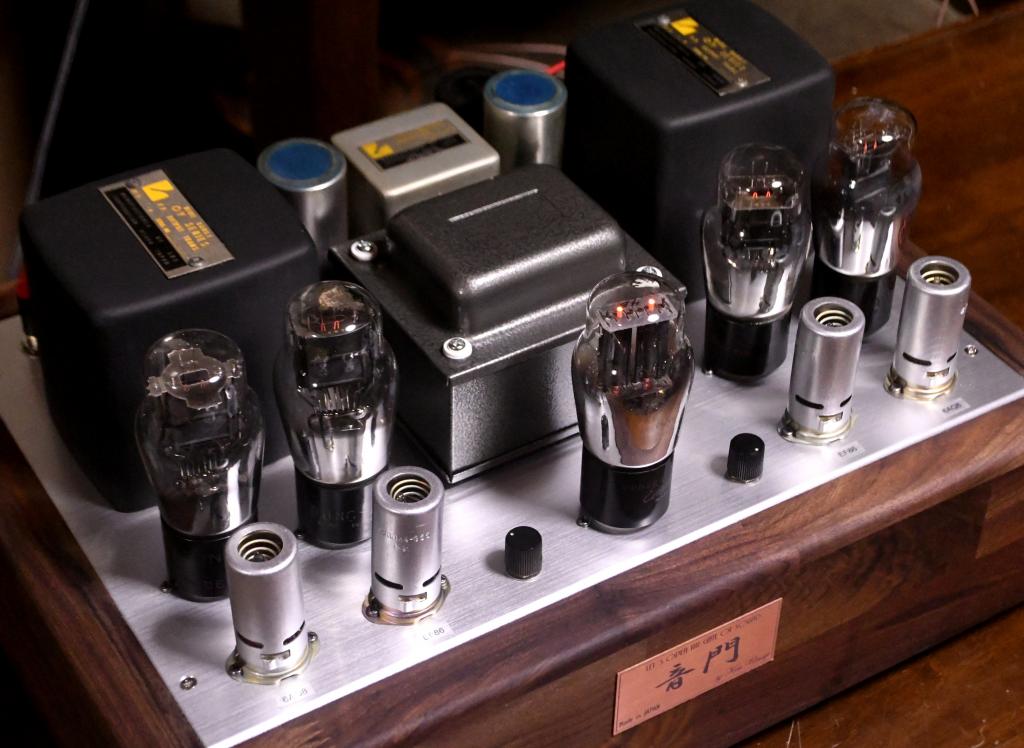

OTOMON LAB 45PP stereo tube amp with LUXMAN output transformer
45 tube amplifier, working in class A1 push pull. Output transformer is Luxman OY series. Output is 7W class A.
Perfect amplifier with power tube 45' and prestage tube EF86, driver tube is 6AQ8. It is really amazing sound, I set it work at class A1 so output
power is only 8W at 8ohm, instead of 15W if you let it work at class A2.
Sound is perfect, very rich, detail and musical
Specification:
Response frequency: 10Hz ~ 100KHz(-1db)
Hum level: 0.2mV
THD: 0.1% 1W
Input volt is 100-230V selectable.
Tubes using in this amp is very popular and easily to find. Prestage tube is EF86, driving tube is 6AQ8(ECC85), Rectifier tube is 83 tube.
No tubes included.
Perfect amplifier with power tube 45' and prestage tube EF86, driver tube is 6AQ8. It is really amazing sound, I set it work at class A1 so output
power is only 8W at 8ohm, instead of 15W if you let it work at class A2.
Sound is perfect, very rich, detail and musical
Specification:
Response frequency: 10Hz ~ 100KHz(-1db)
Hum level: 0.2mV
THD: 0.1% 1W
Input volt is 100-230V selectable.
Tubes using in this amp is very popular and easily to find. Prestage tube is EF86, driving tube is 6AQ8(ECC85), Rectifier tube is 83 tube.
No tubes included.
$1,850.00
