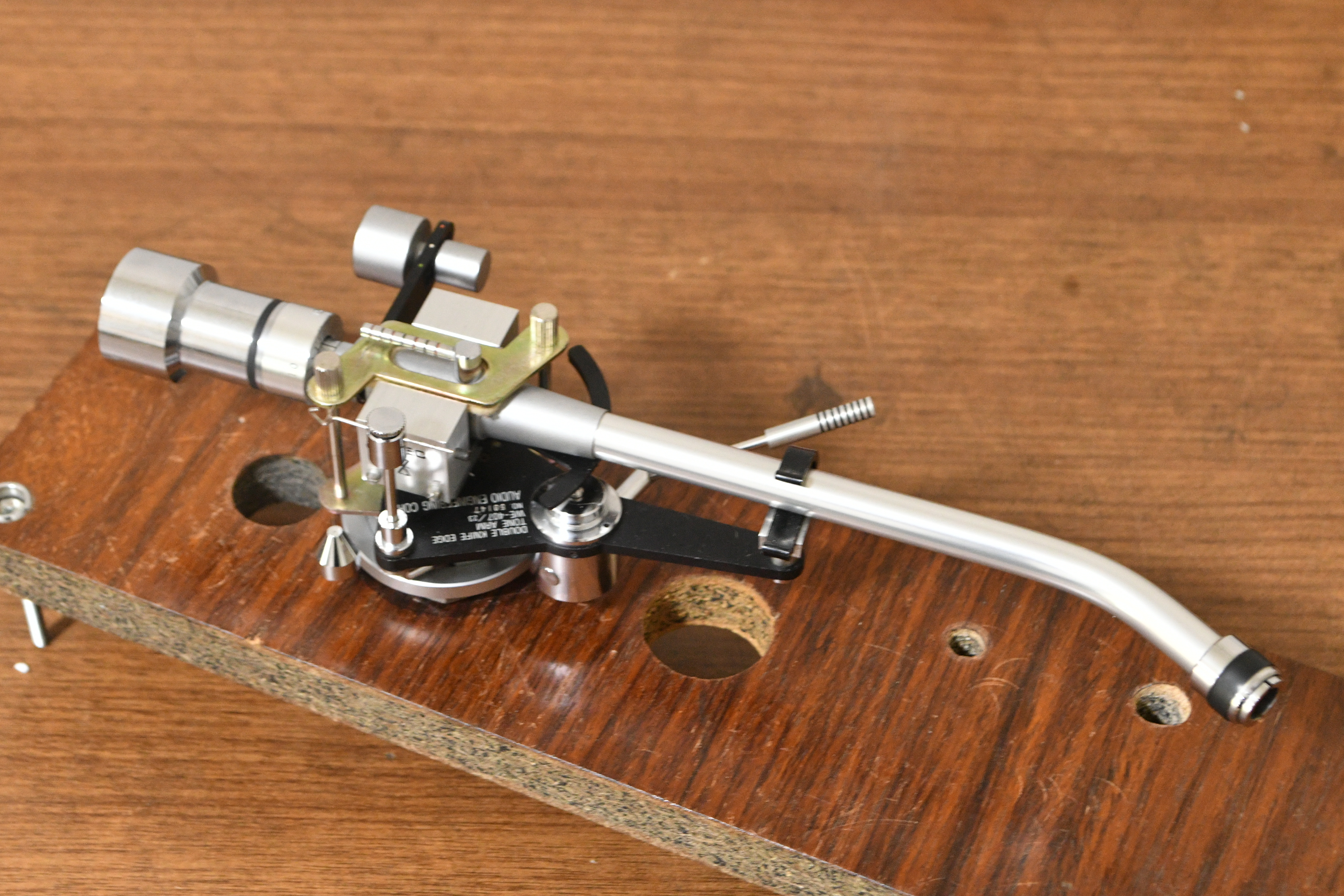

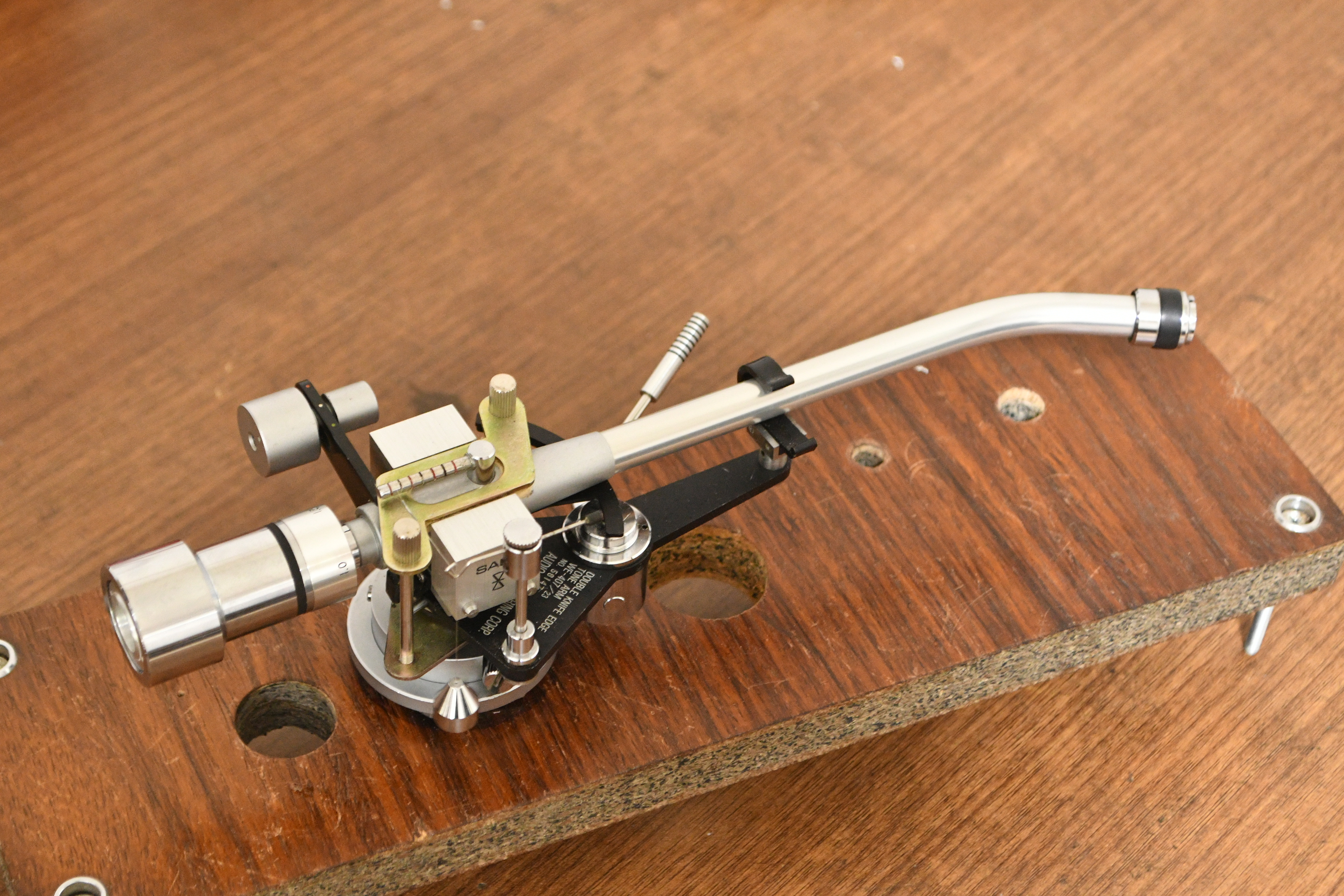

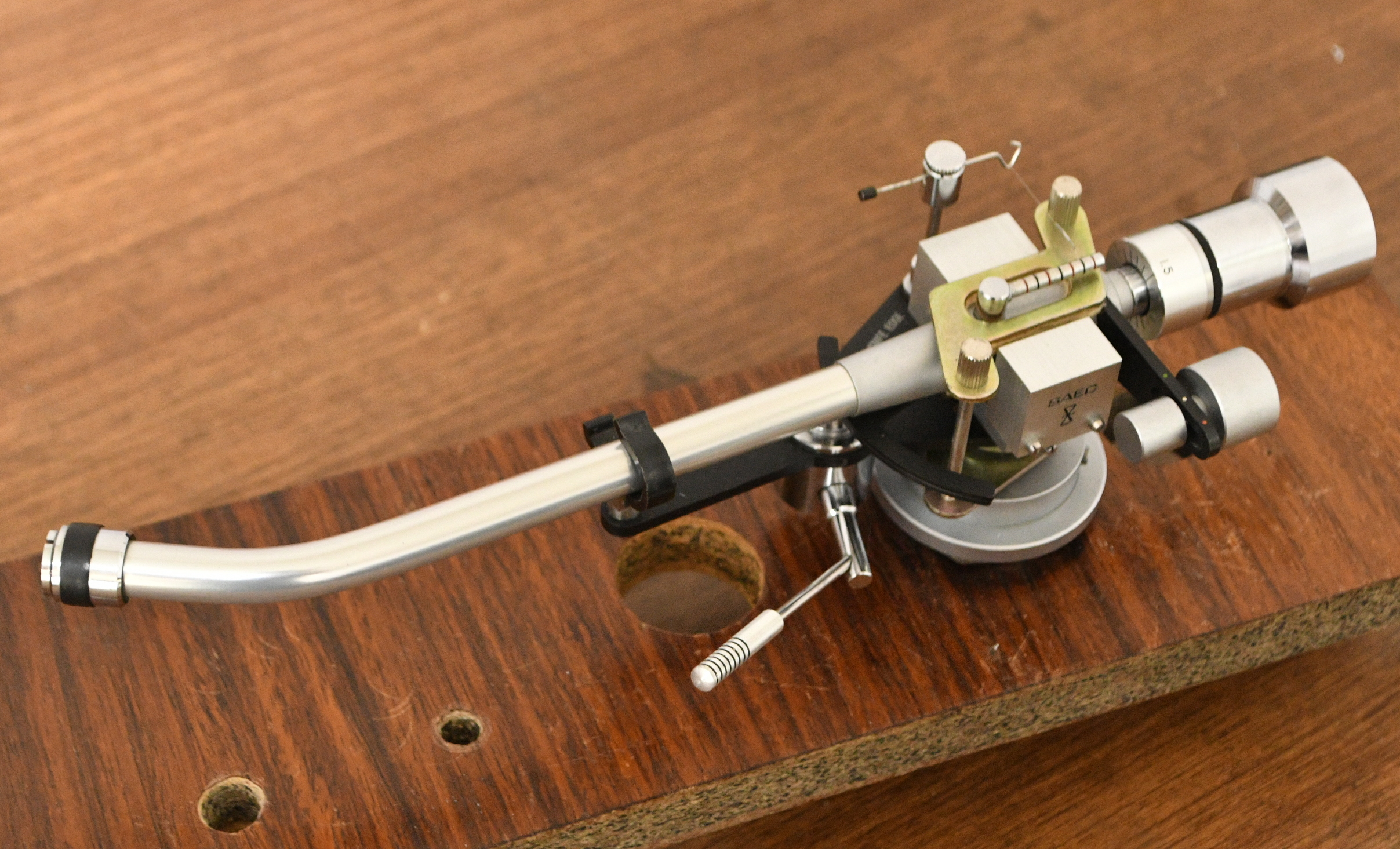

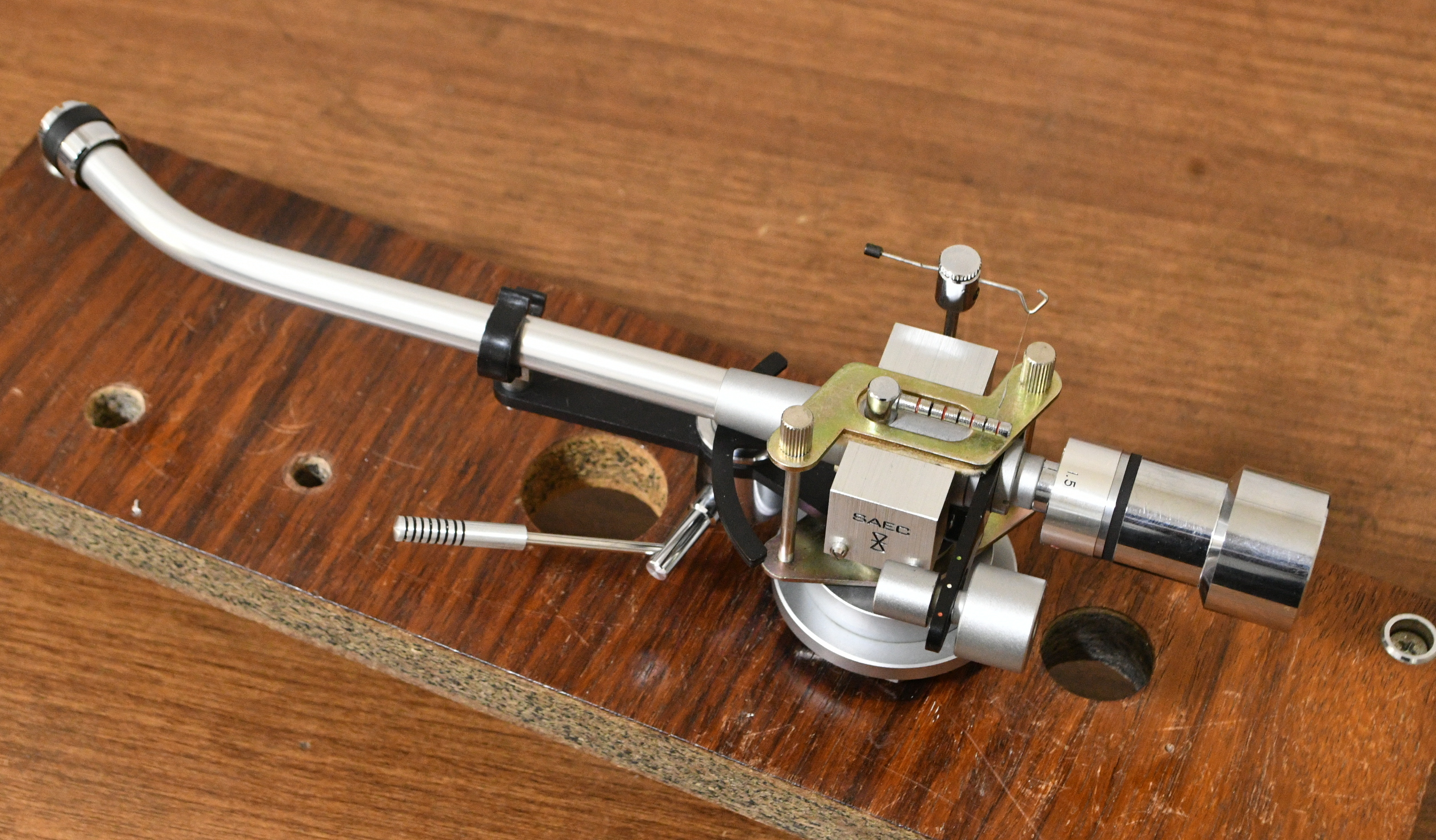

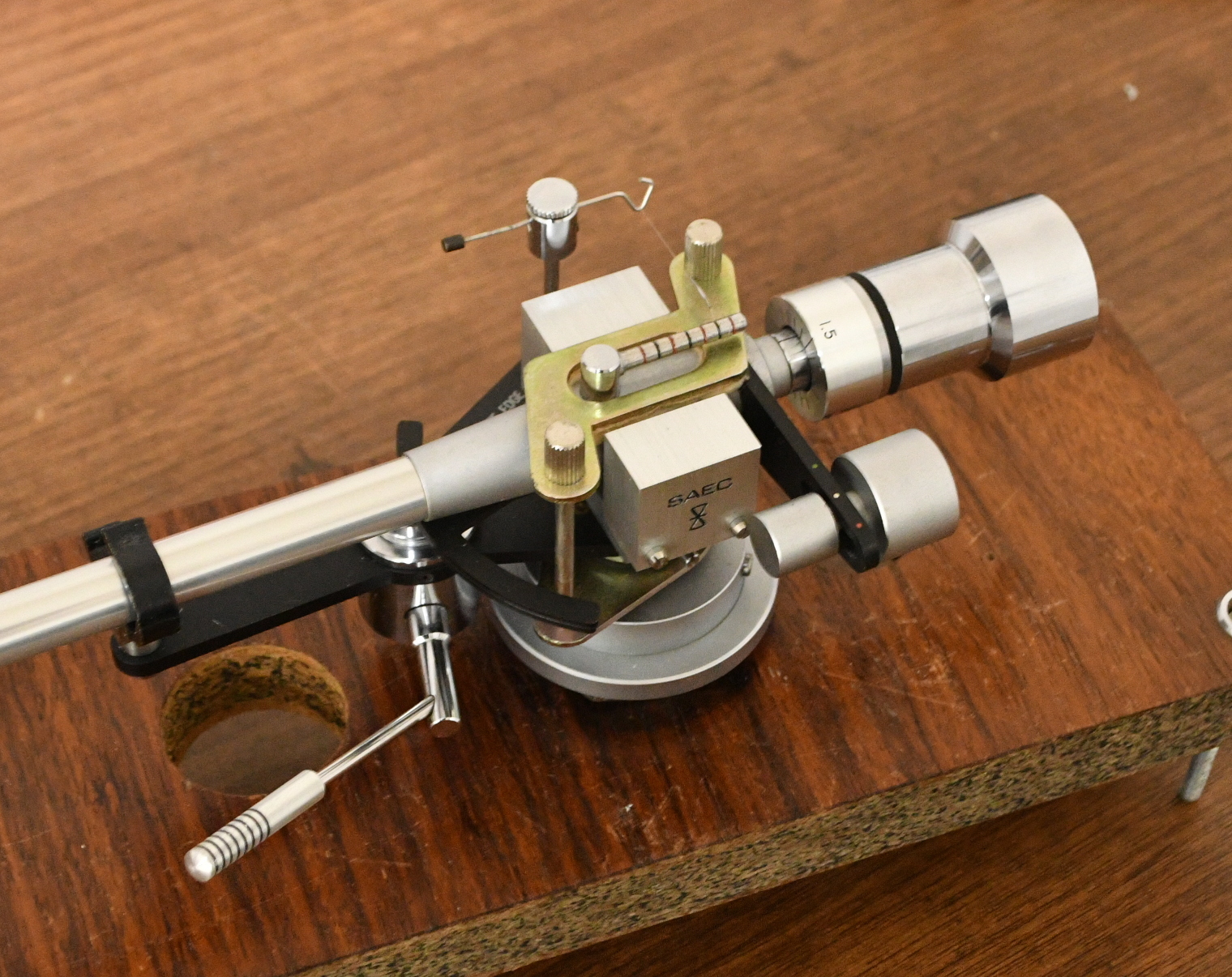

SAEC WE-407/23 tonearm for professional * VG++

It works perfectly, comes with antiskating weight, lateral weight. Item was tested and working perfectly.

Specification:

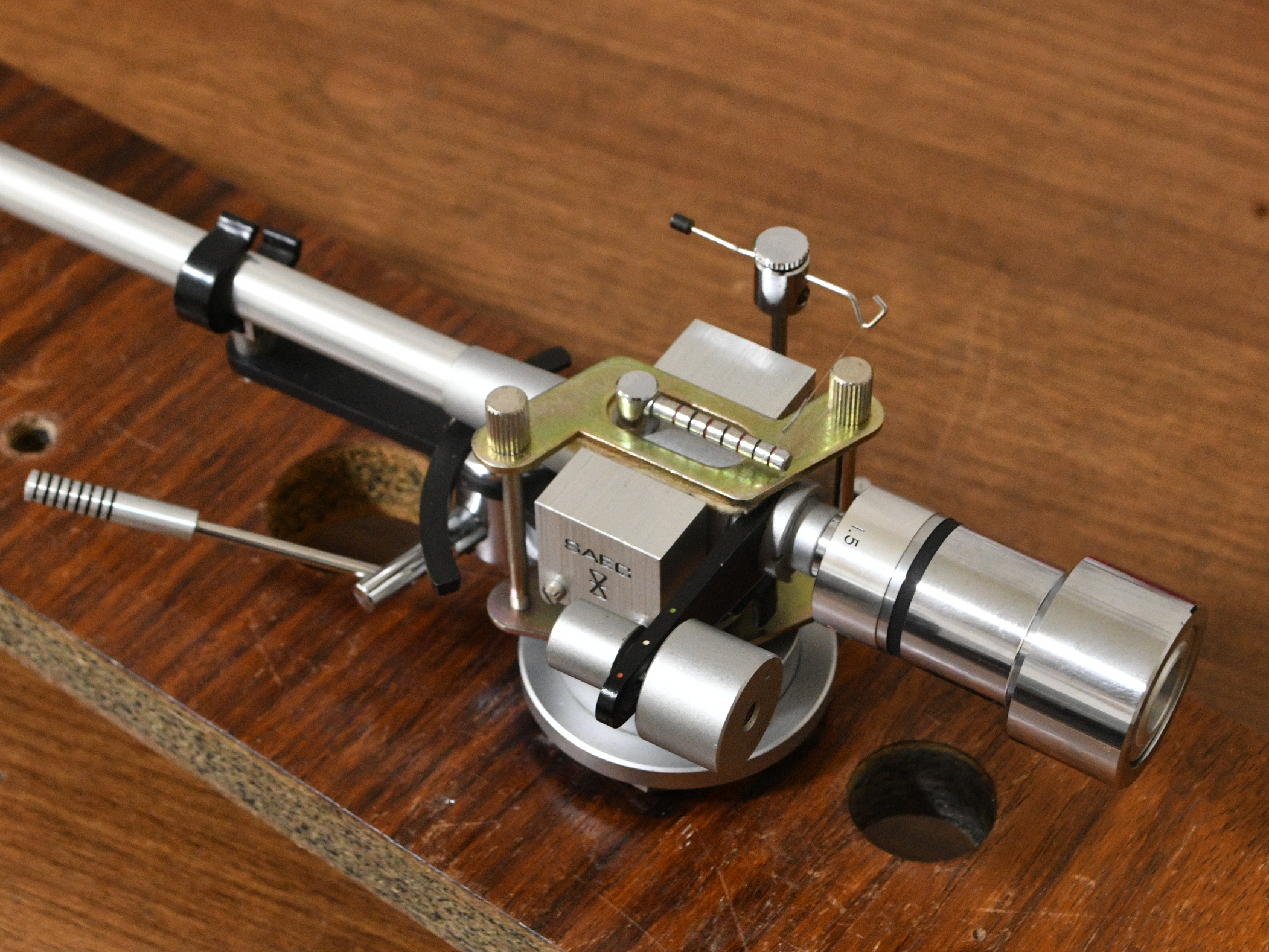

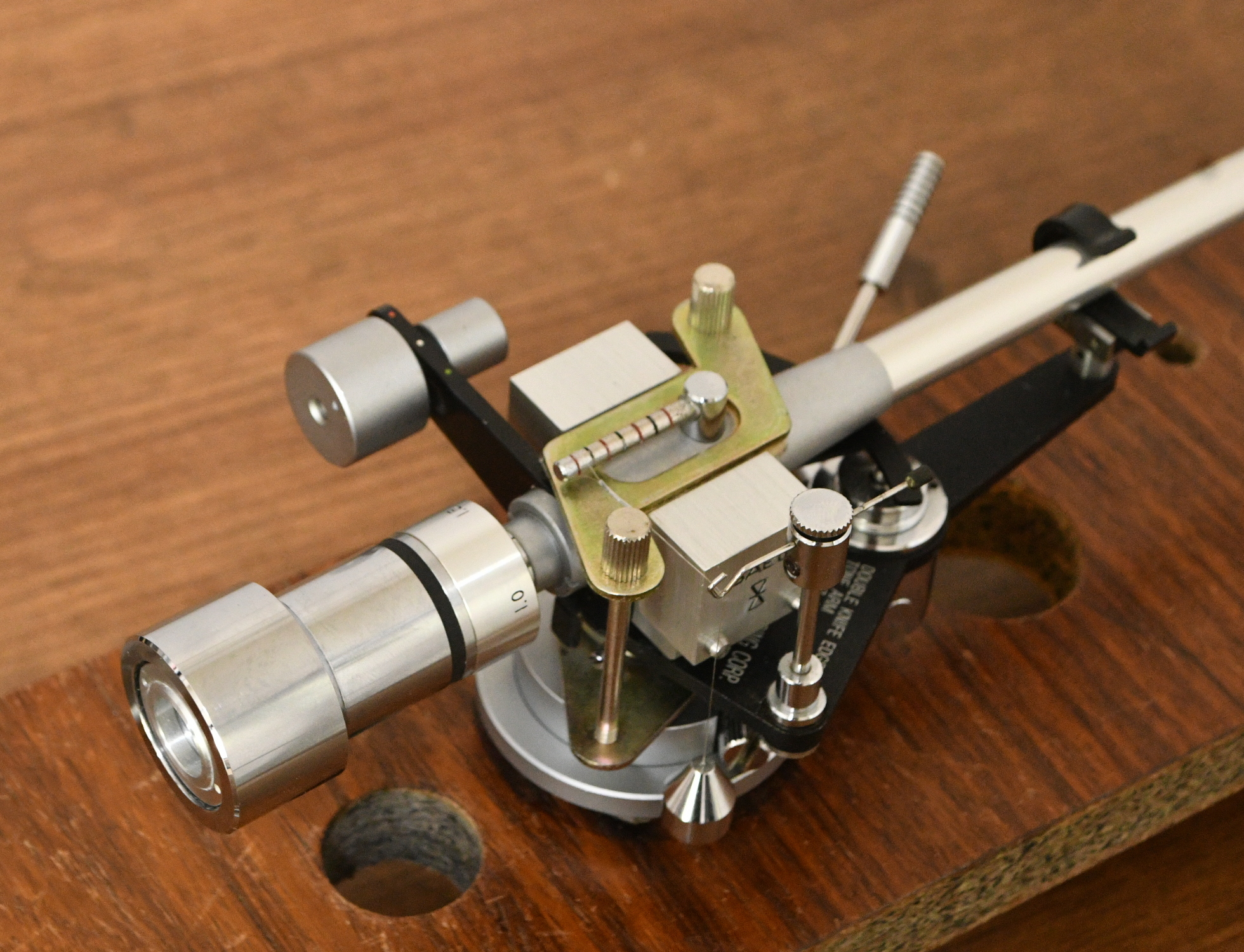

Type: Double knife edge static balance type
Total length: 311mm
Effective length: 233mm
Overhang: 12mm
Tracking error: 0° at inner circumference
Inside force canceller: Thread-hanging weight system with automatic needle pressure micro-increase mechanism
Needle pressure adjustment range: 0-4g (2 rotations, direct reading)
Cartridge usage range: 23g-33.5g (with shell, when using standard weight)
6g-10g (with shell, when using auxiliary weight W-7L)
15g-25g (with shell, when using auxiliary weight W-7M)

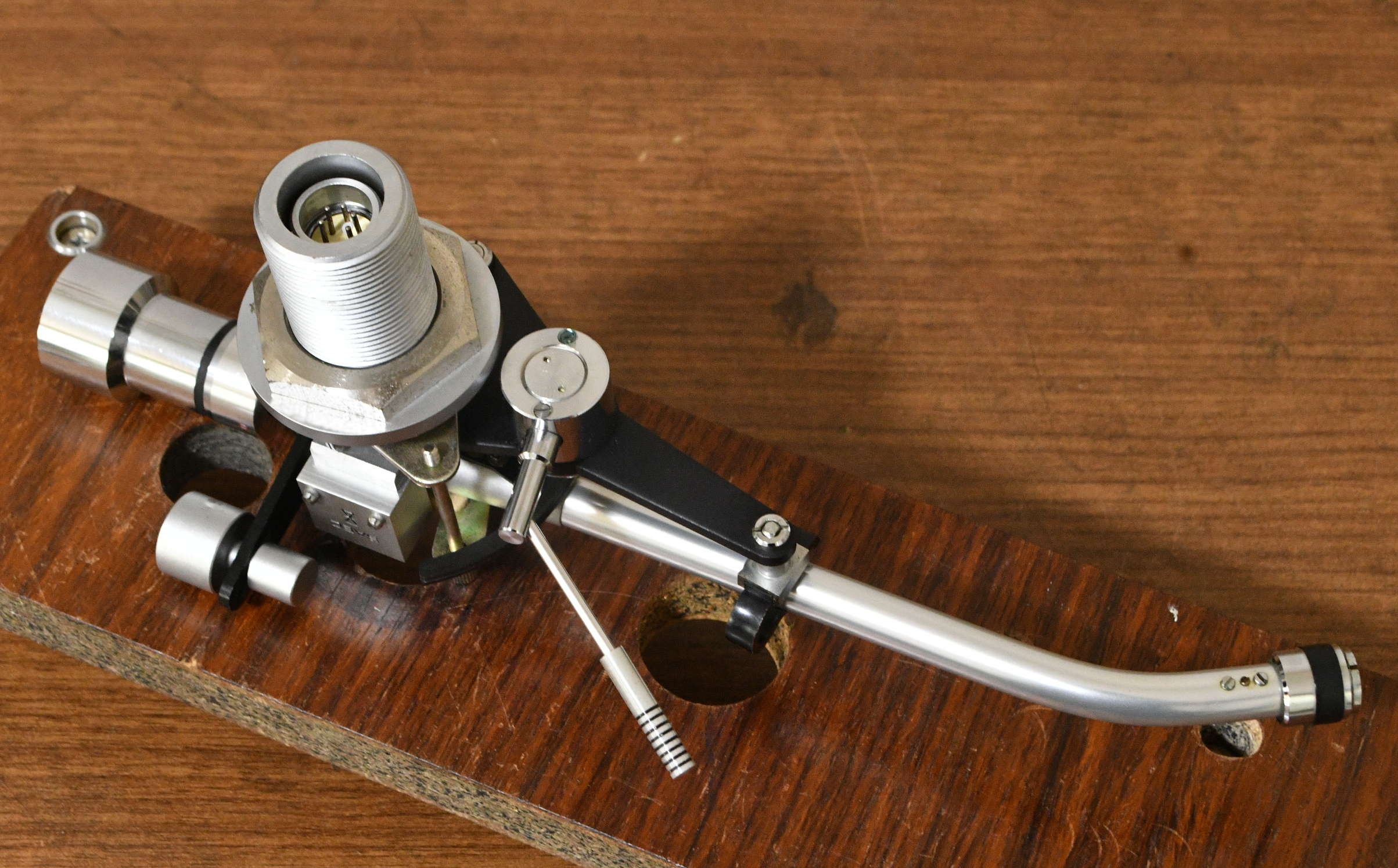

Mounting hole diameter: 30mm (arm shaft diameter: 27cm)
Maximum mounting plate thickness: 35mm

The double knife edge is a bearing method with no diameter and no resistance.
The WE-407/23 has improved processing accuracy, achieving ultra-high precision of less than ±1/500mm. In addition, the latest high-precision processing technology and hand processing, which can be said to be a work of art, have succeeded in miniaturizing the double knife edge, obtaining flexibility for high compliance and lightweight cartridges.

In addition to the mechanical equalizer that optimally damps low-frequency resonance, a newly developed mechanical damping mechanism is adopted, and it has succeeded in lowering the Qo without sacrificing critical movement.
The bearing part that supports the knife edge is concealed by ultra-precise cutting of hard steel material, and is designed not to shift or float up under any force.

It uses a thread-suspended inside force canceller.
This mechanism also has Saeku's unique automatic needle pressure micro-increase mechanism, which increases the needle pressure as it moves toward the inner circumference of the record. By preventing the needle tip from floating up, especially at the inner circumference, it stabilizes the high range and enables playback with less distortion.

The arm pipe is made of a specially treated, high-rigidity light alloy pipe, thoroughly suppressing pipe noise that is unique to metal materials.

The main weight is a helicoid type that can apply accurate stylus pressure, and has a built-in damping mechanism that absorbs external vibrations transmitted through the arm bearing.

Equipped with an oil elevator with a free stopper mechanism.

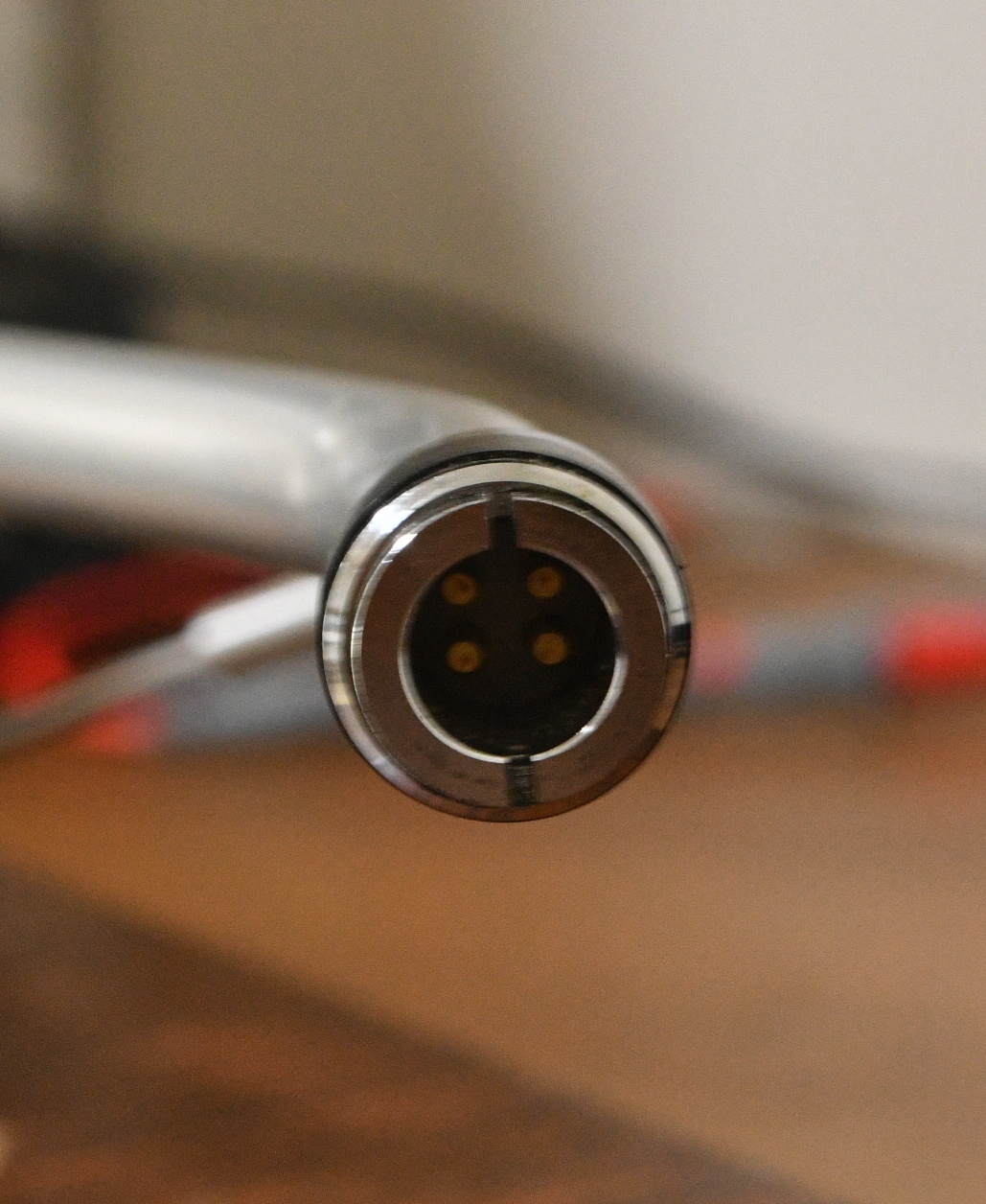

The arm pipe and shell are connected using the T.T. method (three-point crimping), eliminating connection play.

Short type arm.

By using the separately sold middle mass weight and light mass weight, almost all commercially available cartridges can be used.
