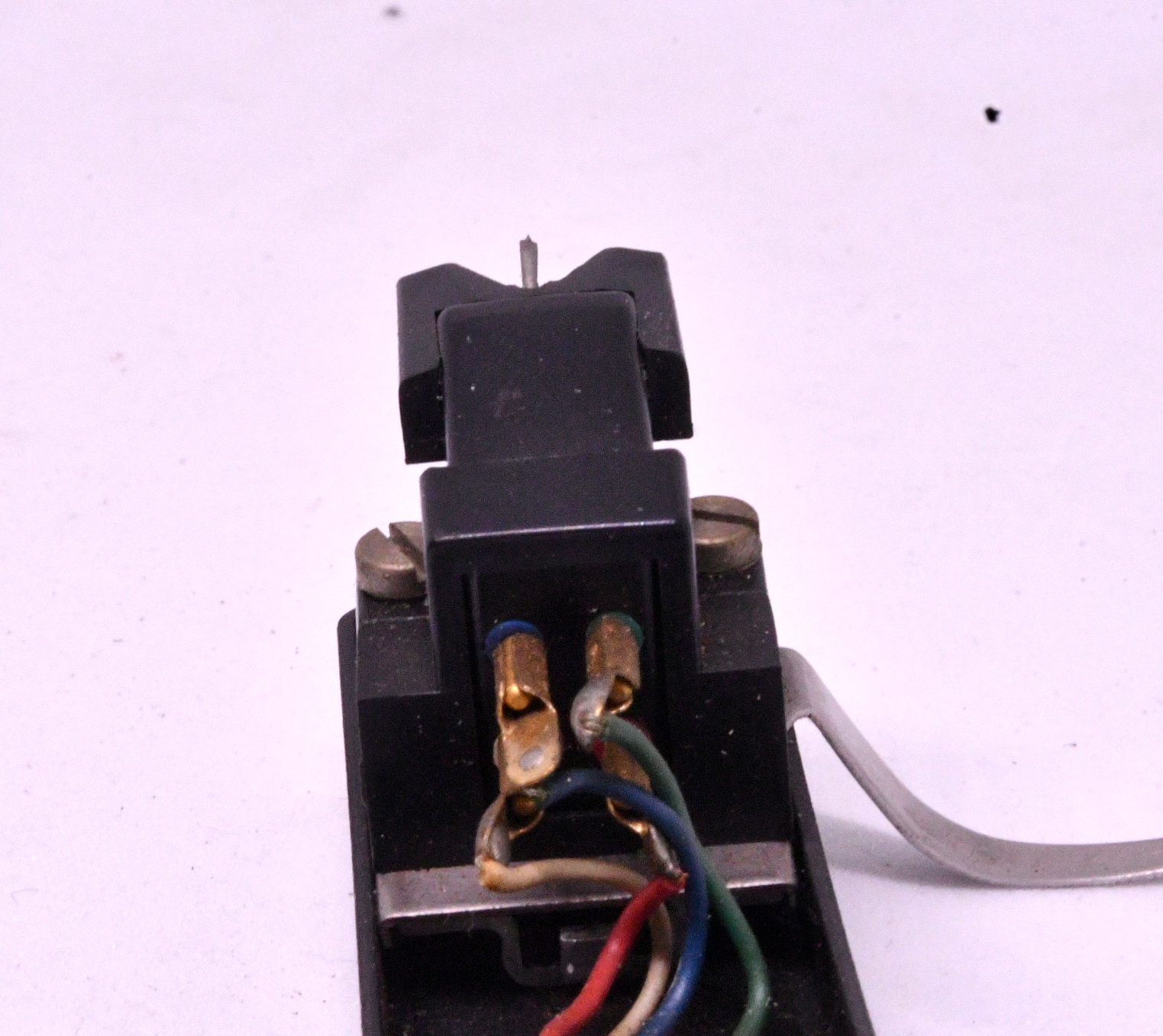

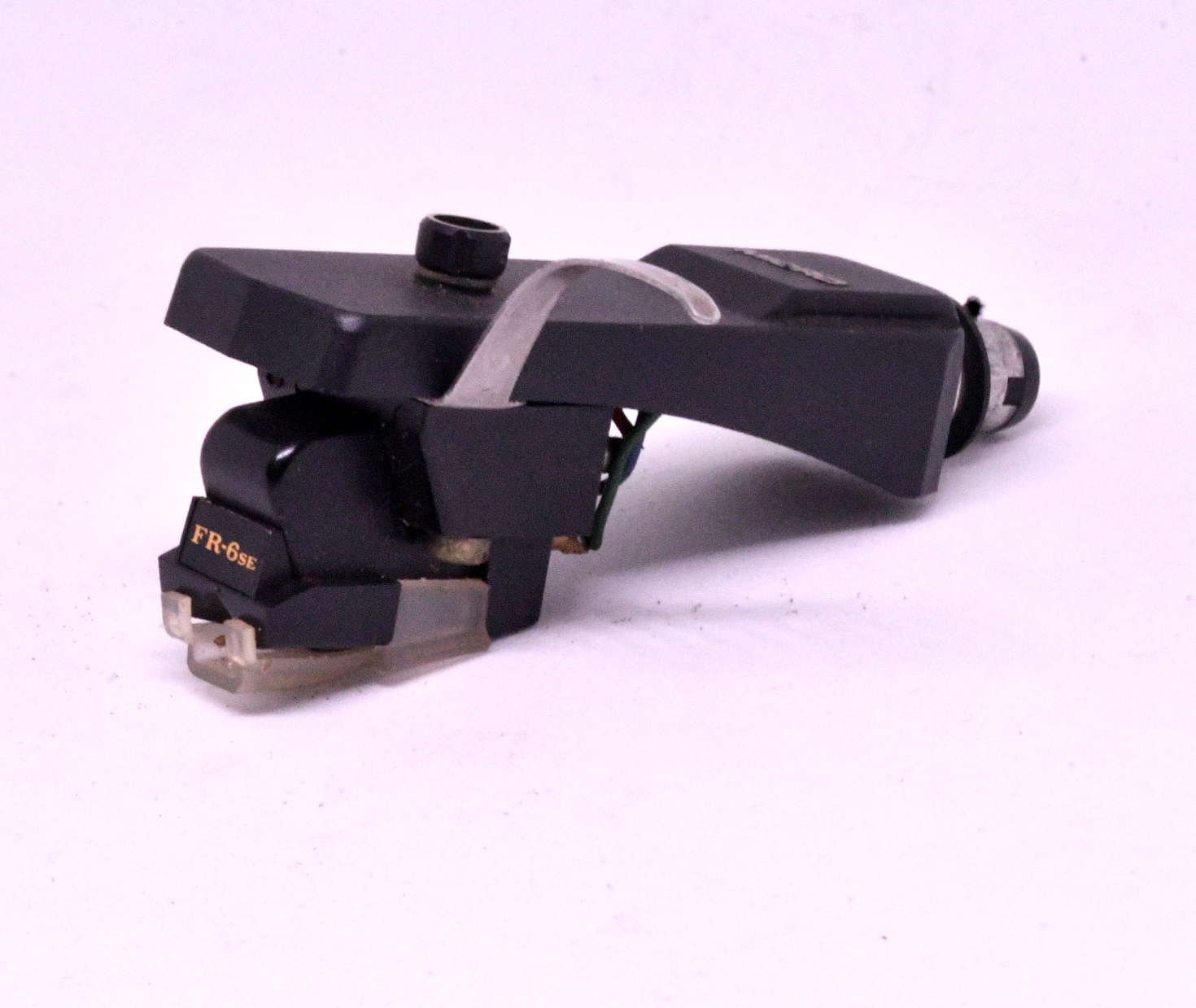

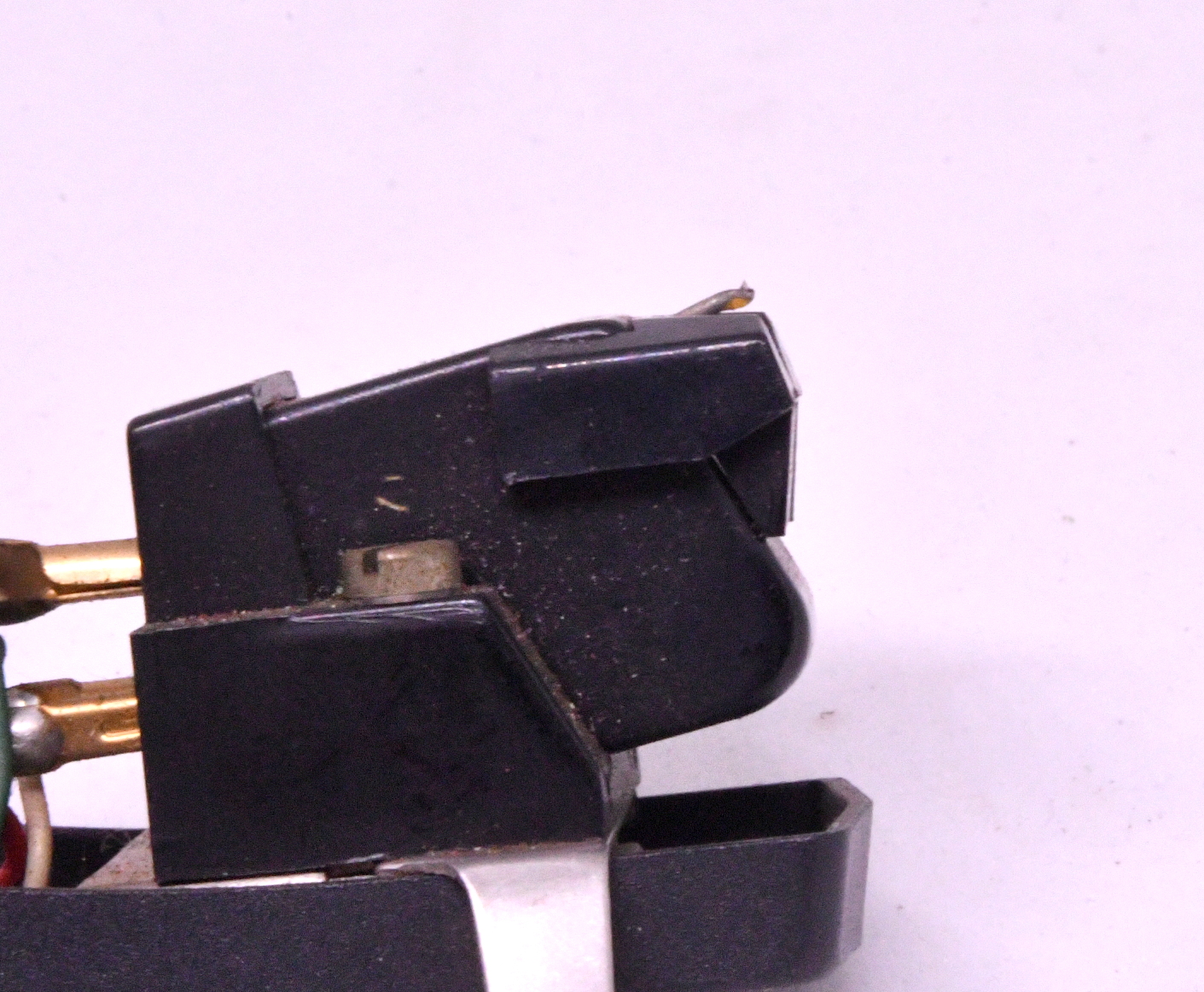

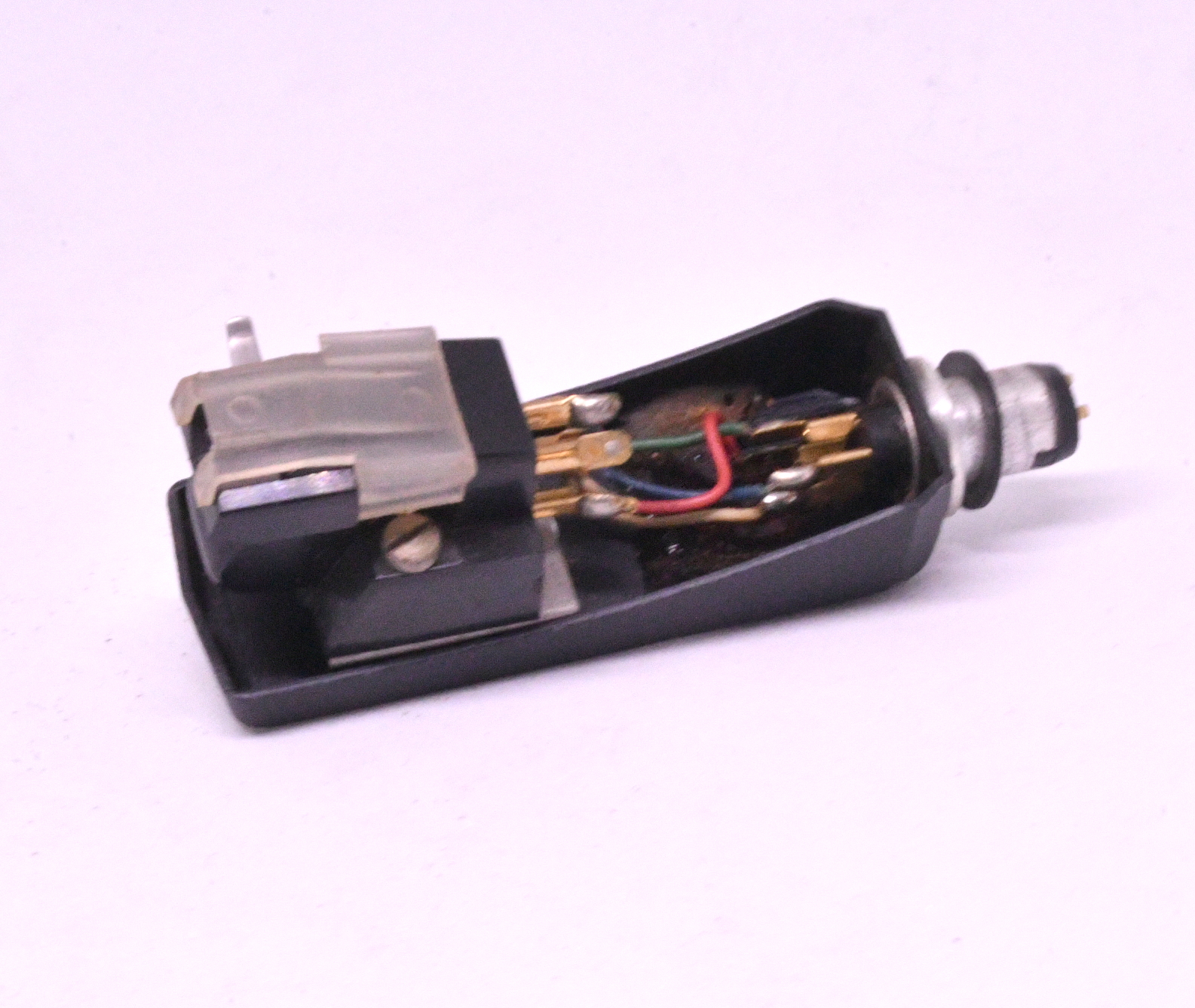

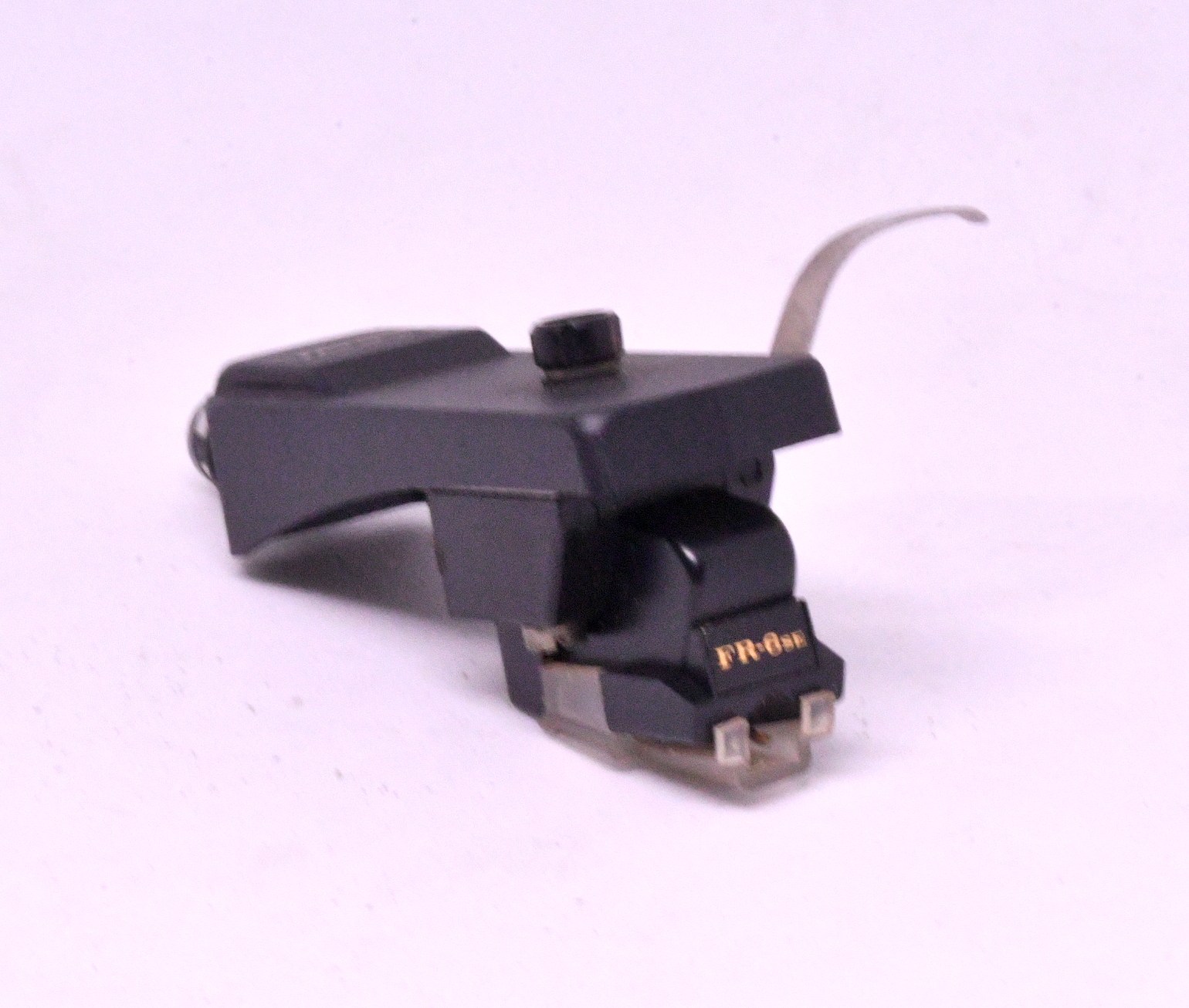

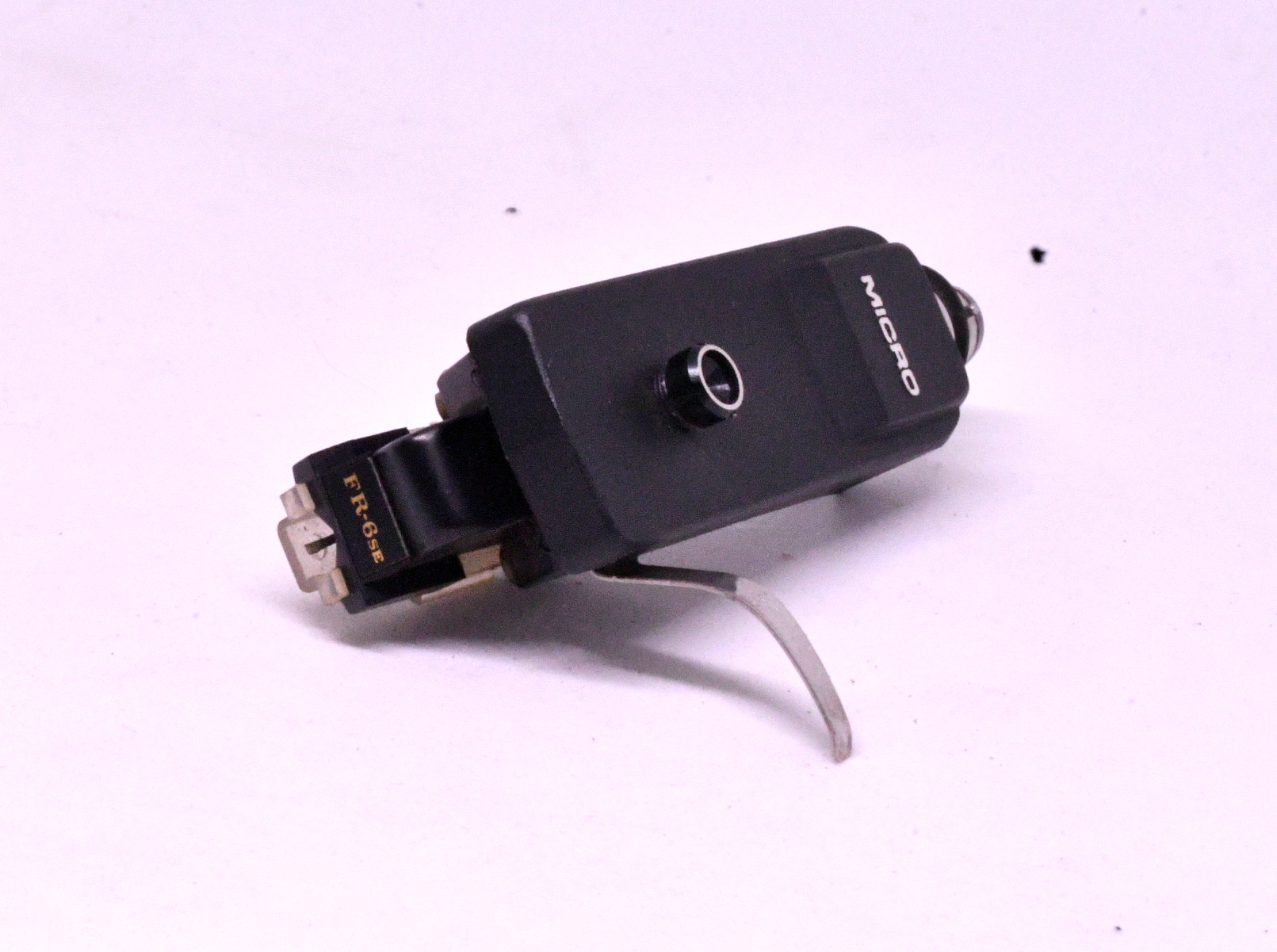

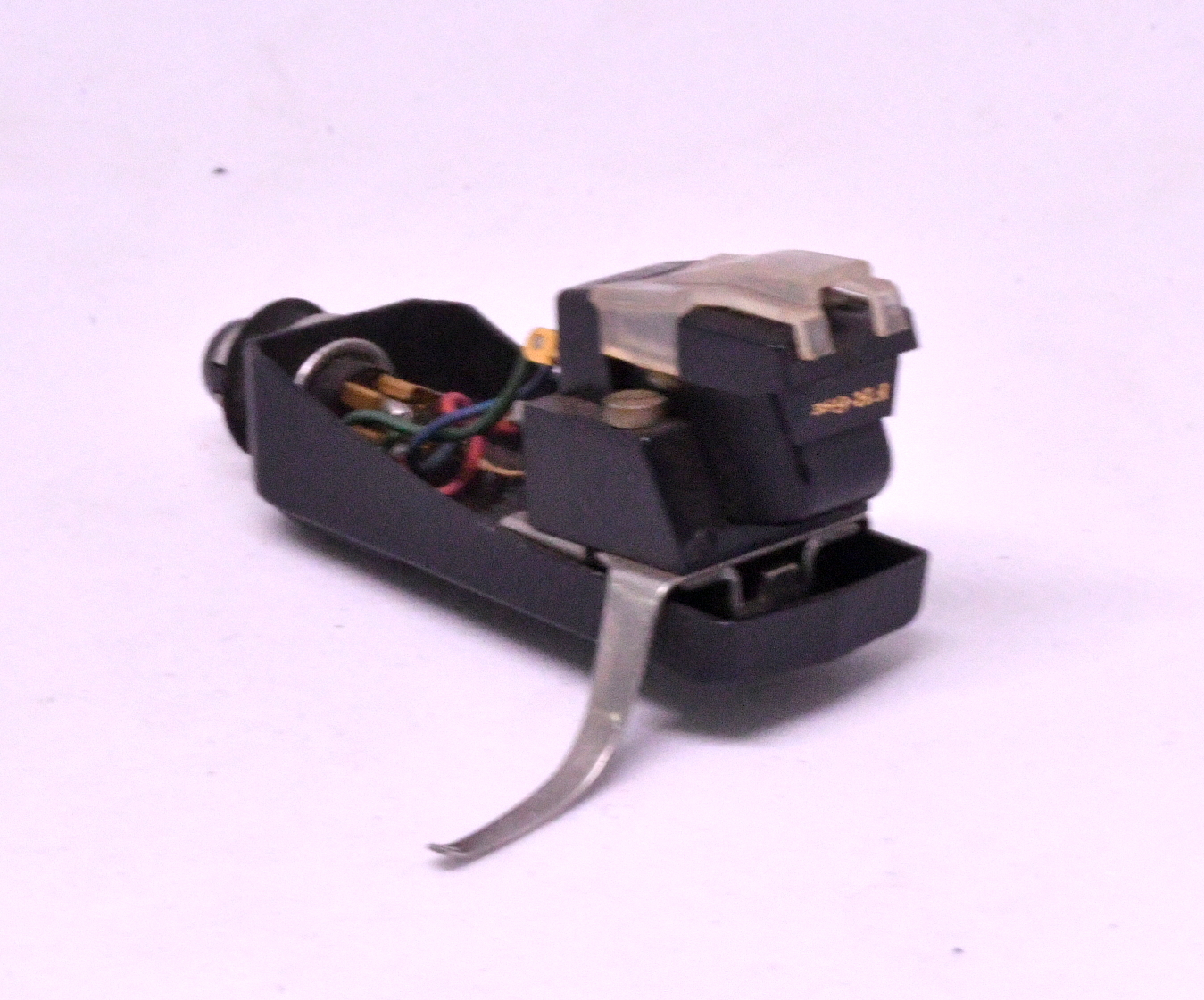

Fidelity Reaserch FR-6SE MM Cartridge With Micro seiki HS-1 headshell * VG++
Our target is not to chase arbitrary bench measurements for the sake of specifications alone, even though our amplifier comfortably outperforms most standard products on the market. While we possess the engineering capability to force even lower distortion figures on paper, we deliberately choose a different path.
Our true focus is the emotional energy and vitality that music conveys, which can not be calculated by any machine, rather than achieving the lower possible THD or the wider frequency response. To capture the true soul of the music, we willingly accept trade-offs in conventional technical data when it serves the ultimate listening experience
Our true focus is the emotional energy and vitality that music conveys, which can not be calculated by any machine, rather than achieving the lower possible THD or the wider frequency response. To capture the true soul of the music, we willingly accept trade-offs in conventional technical data when it serves the ultimate listening experience
Fidelity Reaserch FR-6SE MM Cartridge With Micro seiki HS-1 headshell * VG++
Perfect working condition.
Specification:
The magnetic circuit uses a newly designed toroidal type.
By reconsidering everything from the core shape to the circuit design and body structure, we aim to expand the expressive power.
The FR-6SE has been devised to increase the momentum of the vibration system magnet, and by creating a bias effect in the magnetic circuit, the low level non-linear part is excluded from the usable range.
Load impedance 47kΩ to 50kΩ
Frequency characteristics 20Hz~20kHz +6 -0.5dB
Channel balance 1dB(1kHz)
Channel separation 26dB(1kHz)
Compliance 10x10-6cm/dyne
Coil impedance 700Ω(1kHz)
Needle tip: 0.2x0.8mil oval needle (around 1973)
0.3x0.8mil oval diamond needle (around 1978)
Needle pressure 1.5g to 2g
Output voltage 7mV (5cm/s, 45°, around 1973)
5.5mV (around 1978)
Weight 5.5g
Perfect working condition.
Specification:
The magnetic circuit uses a newly designed toroidal type.
By reconsidering everything from the core shape to the circuit design and body structure, we aim to expand the expressive power.
The FR-6SE has been devised to increase the momentum of the vibration system magnet, and by creating a bias effect in the magnetic circuit, the low level non-linear part is excluded from the usable range.
Load impedance 47kΩ to 50kΩ
Frequency characteristics 20Hz~20kHz +6 -0.5dB
Channel balance 1dB(1kHz)
Channel separation 26dB(1kHz)
Compliance 10x10-6cm/dyne
Coil impedance 700Ω(1kHz)
Needle tip: 0.2x0.8mil oval needle (around 1973)
0.3x0.8mil oval diamond needle (around 1978)
Needle pressure 1.5g to 2g
Output voltage 7mV (5cm/s, 45°, around 1973)
5.5mV (around 1978)
Weight 5.5g
Official Representative in Vietnam: OTOMON VIETNAM
$125.00
