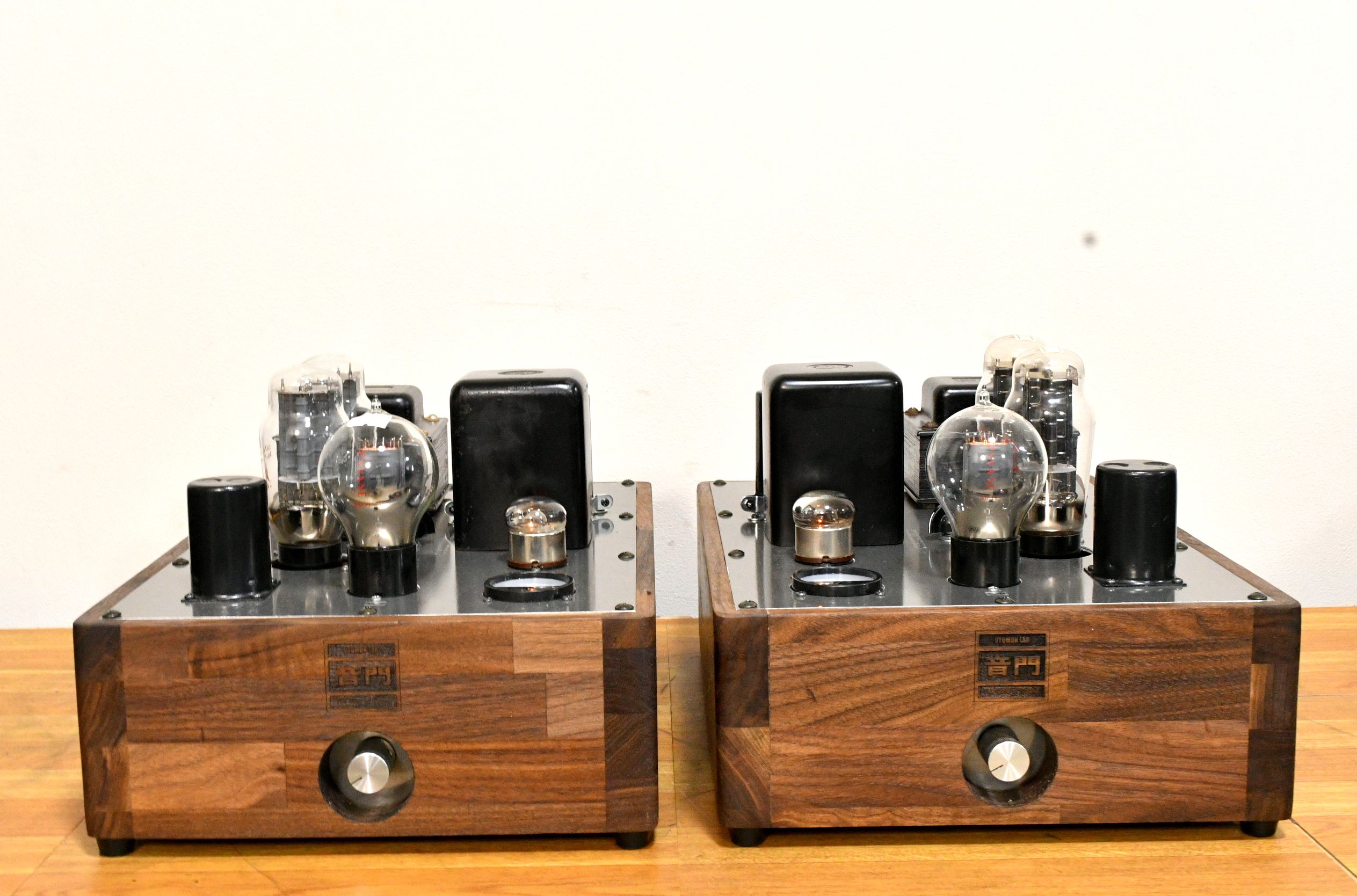

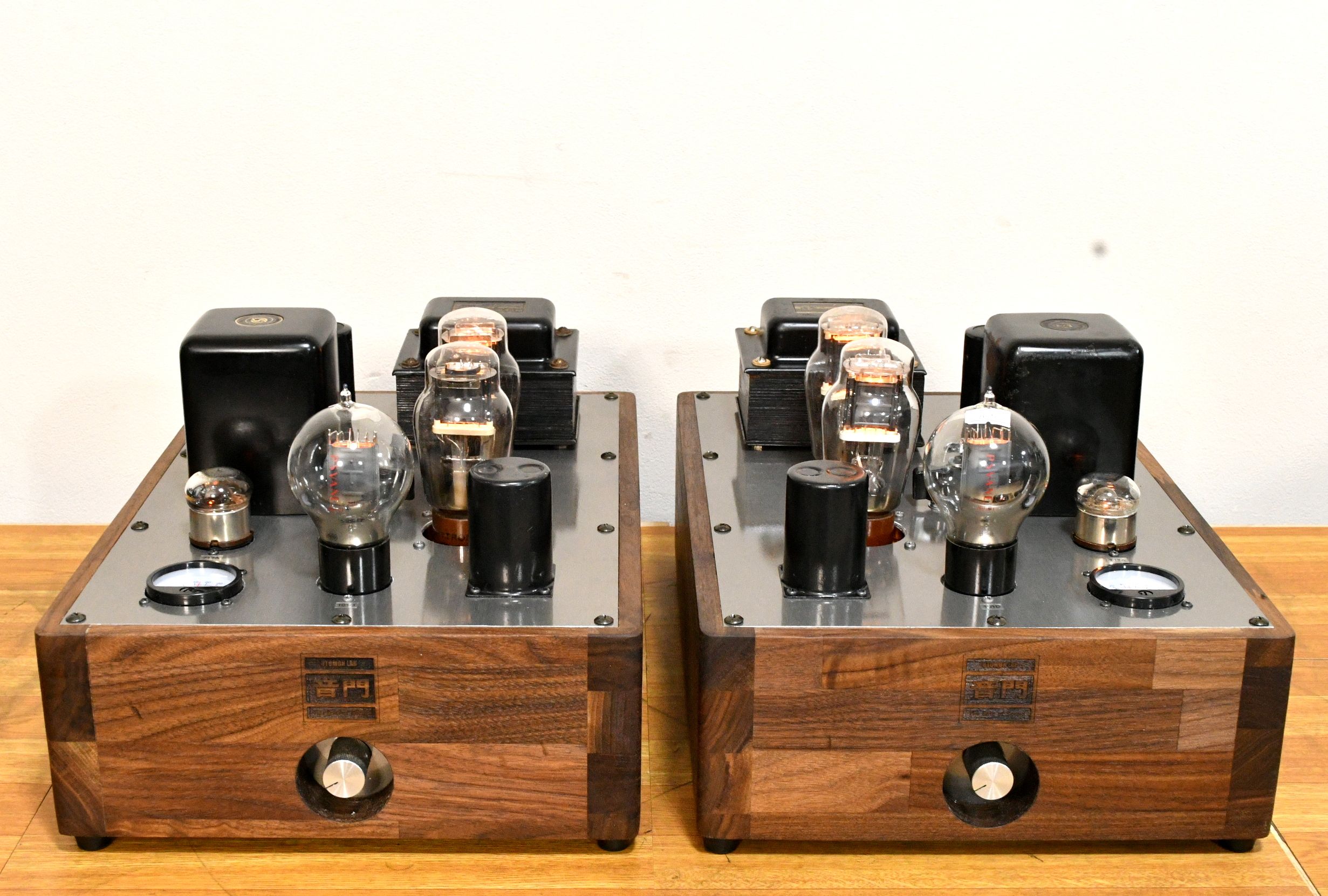

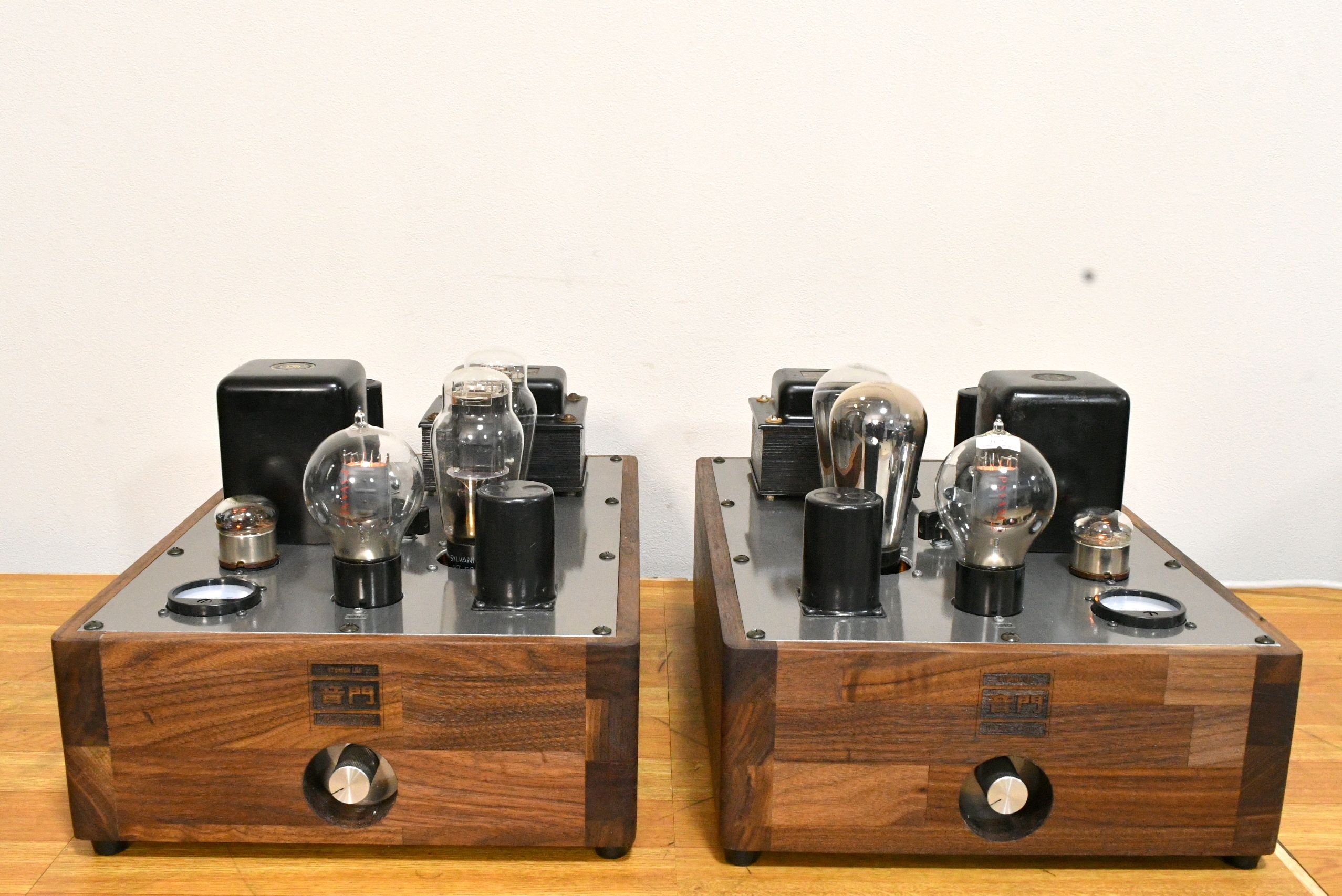

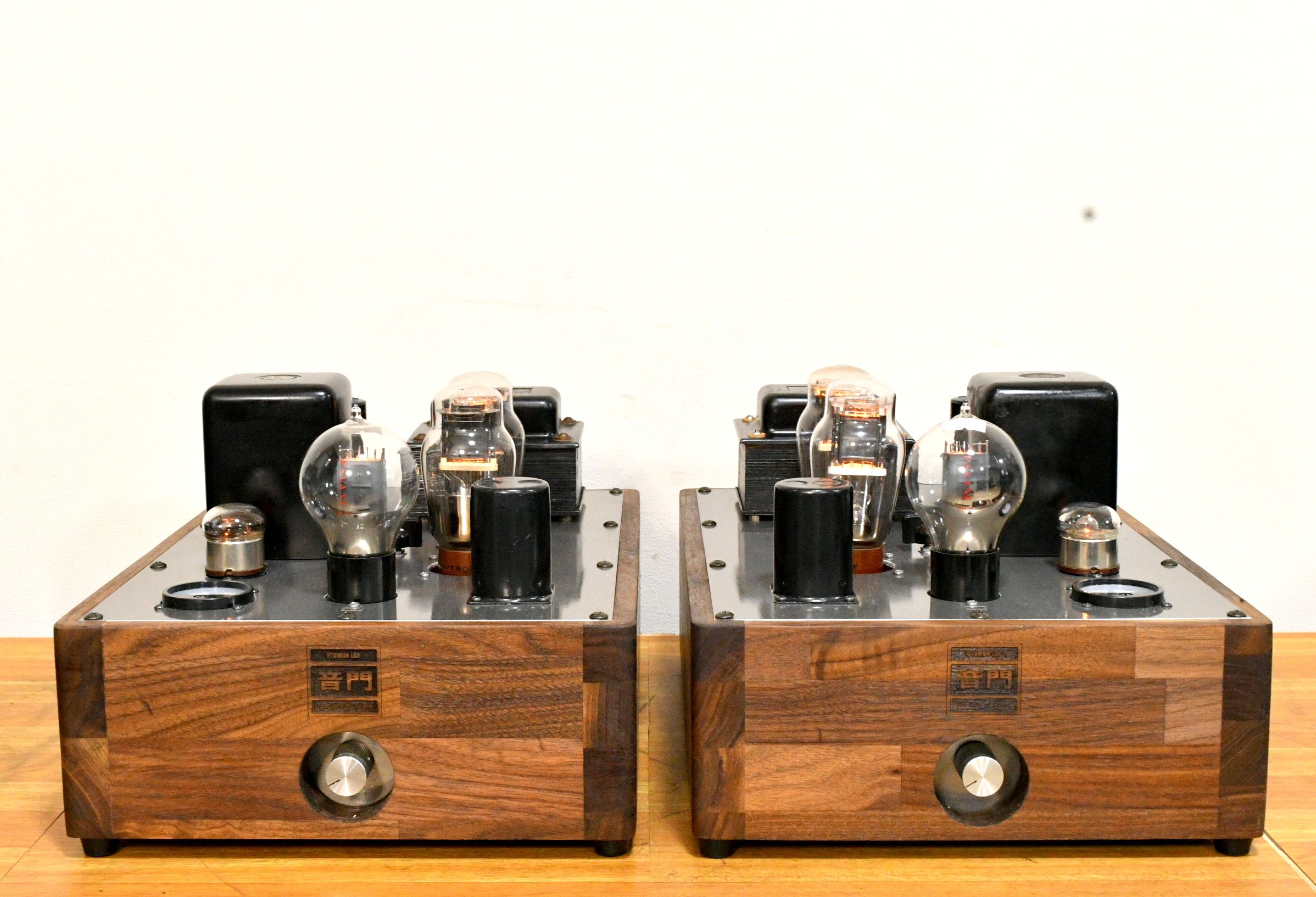

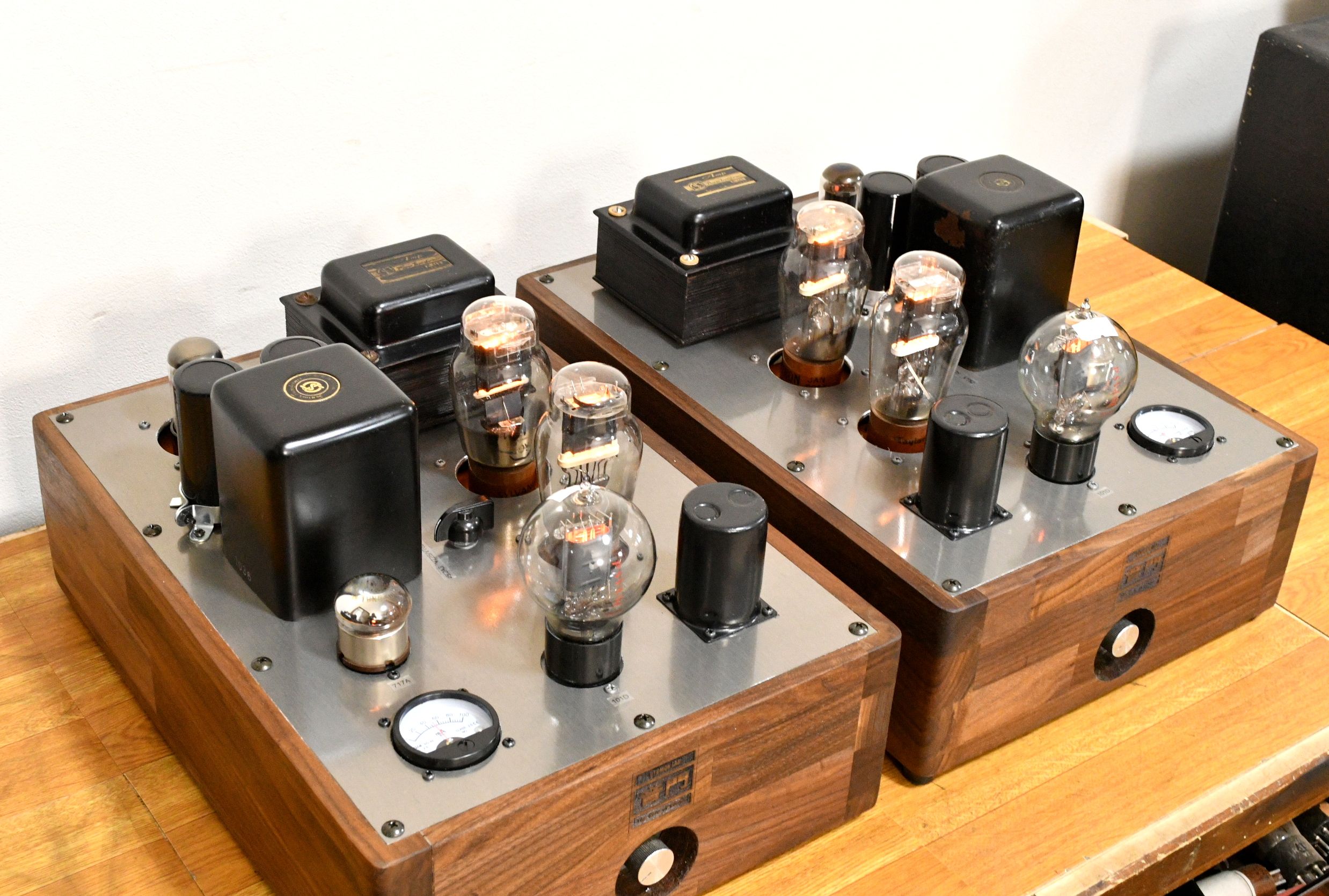

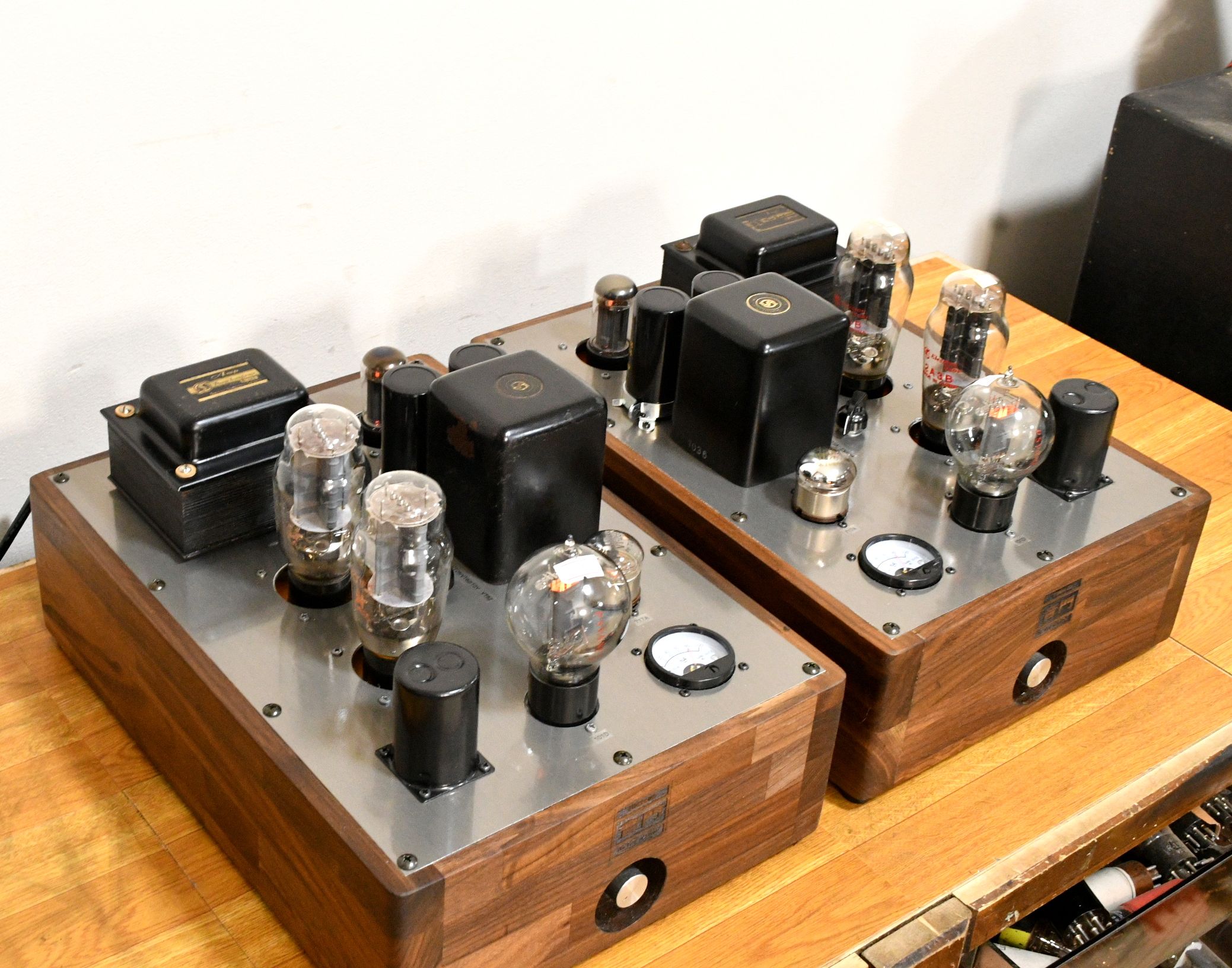

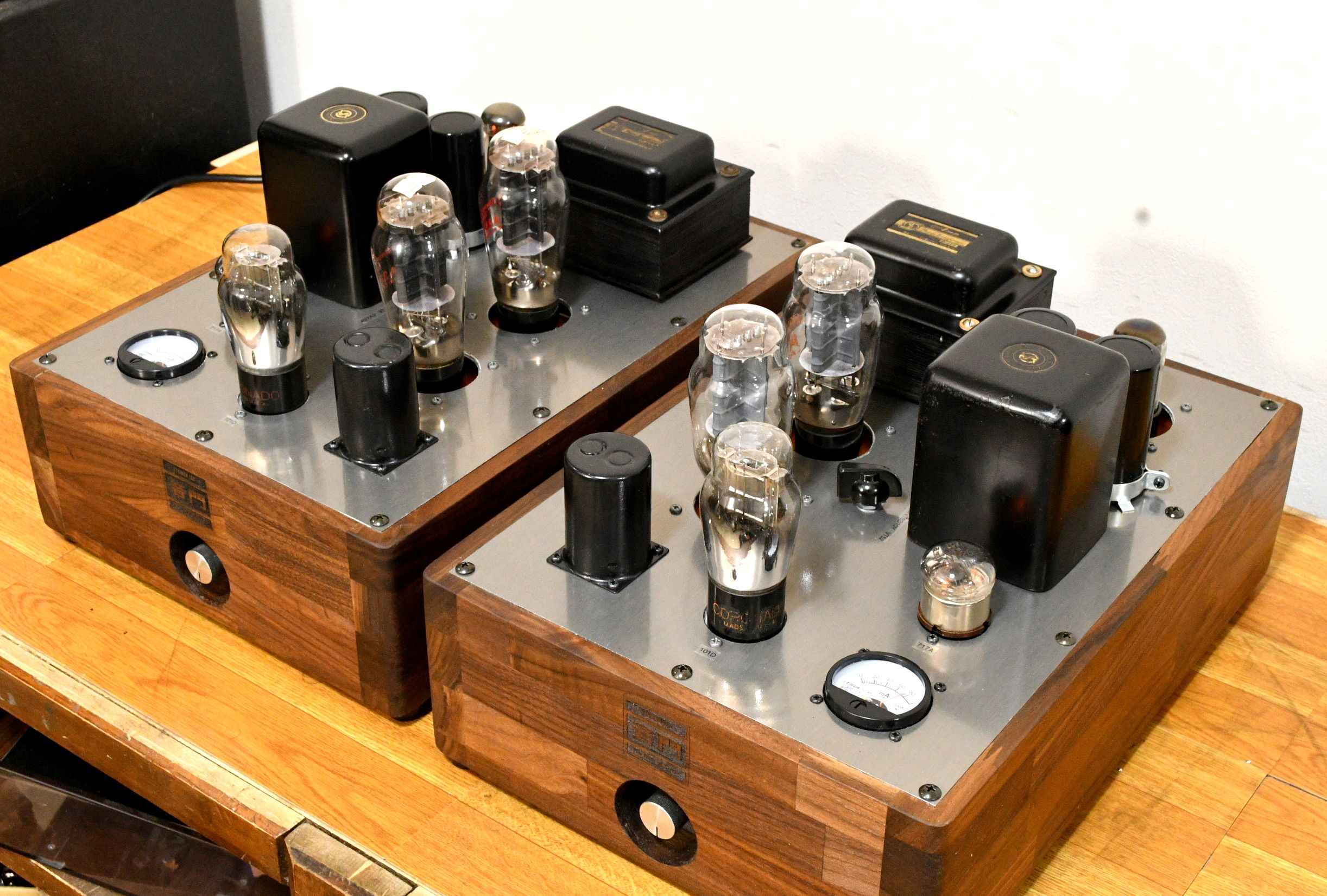

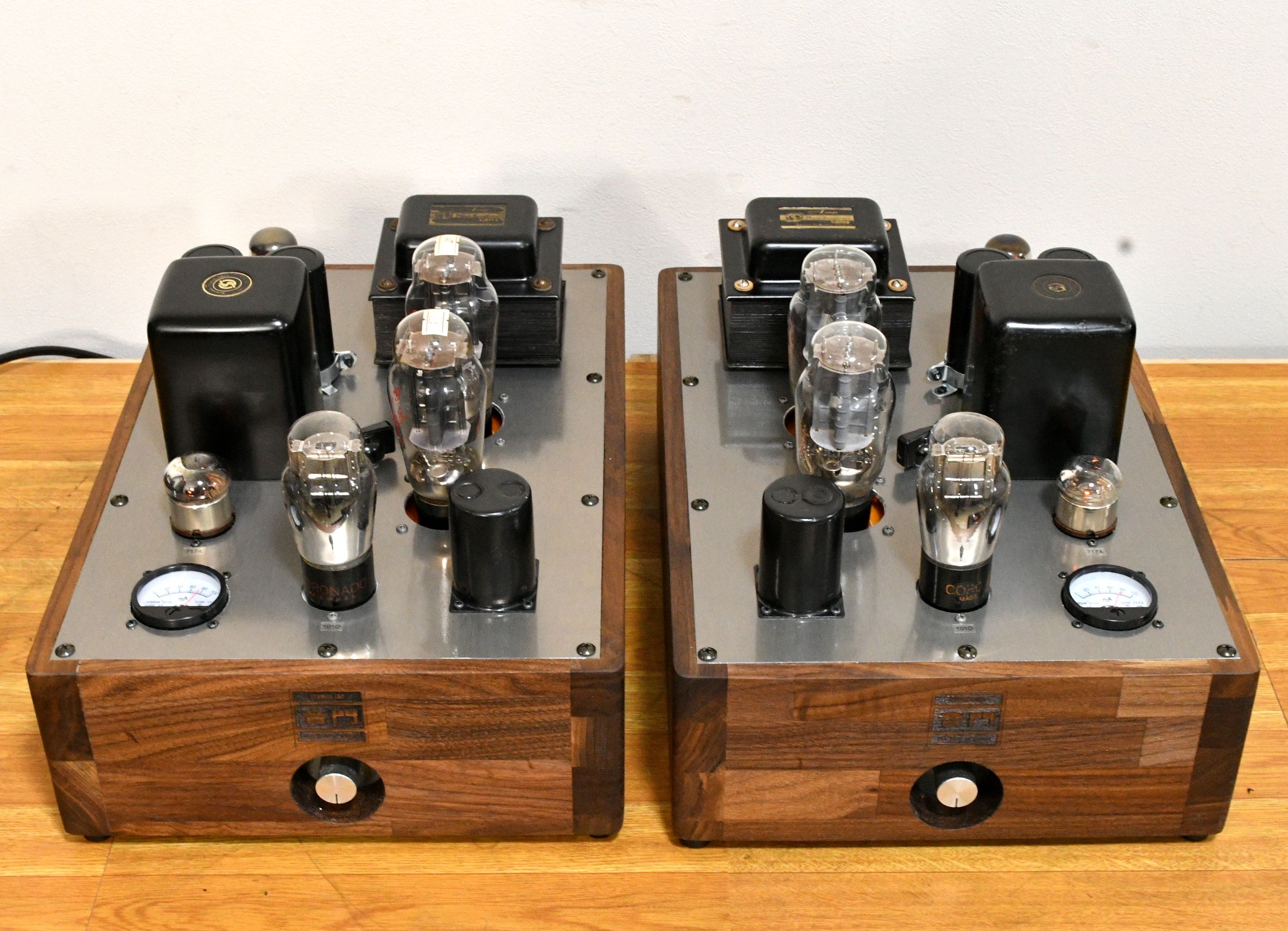

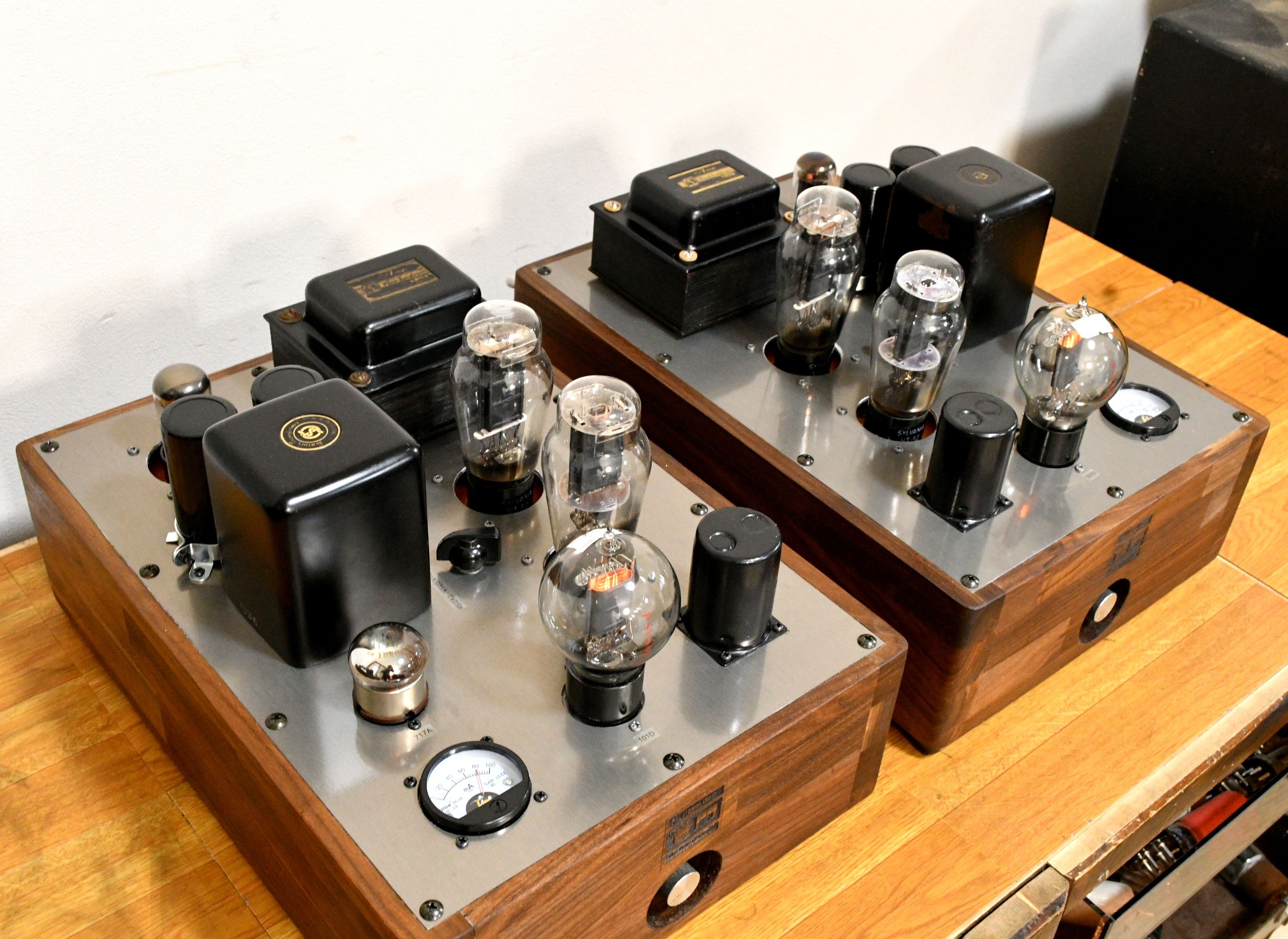

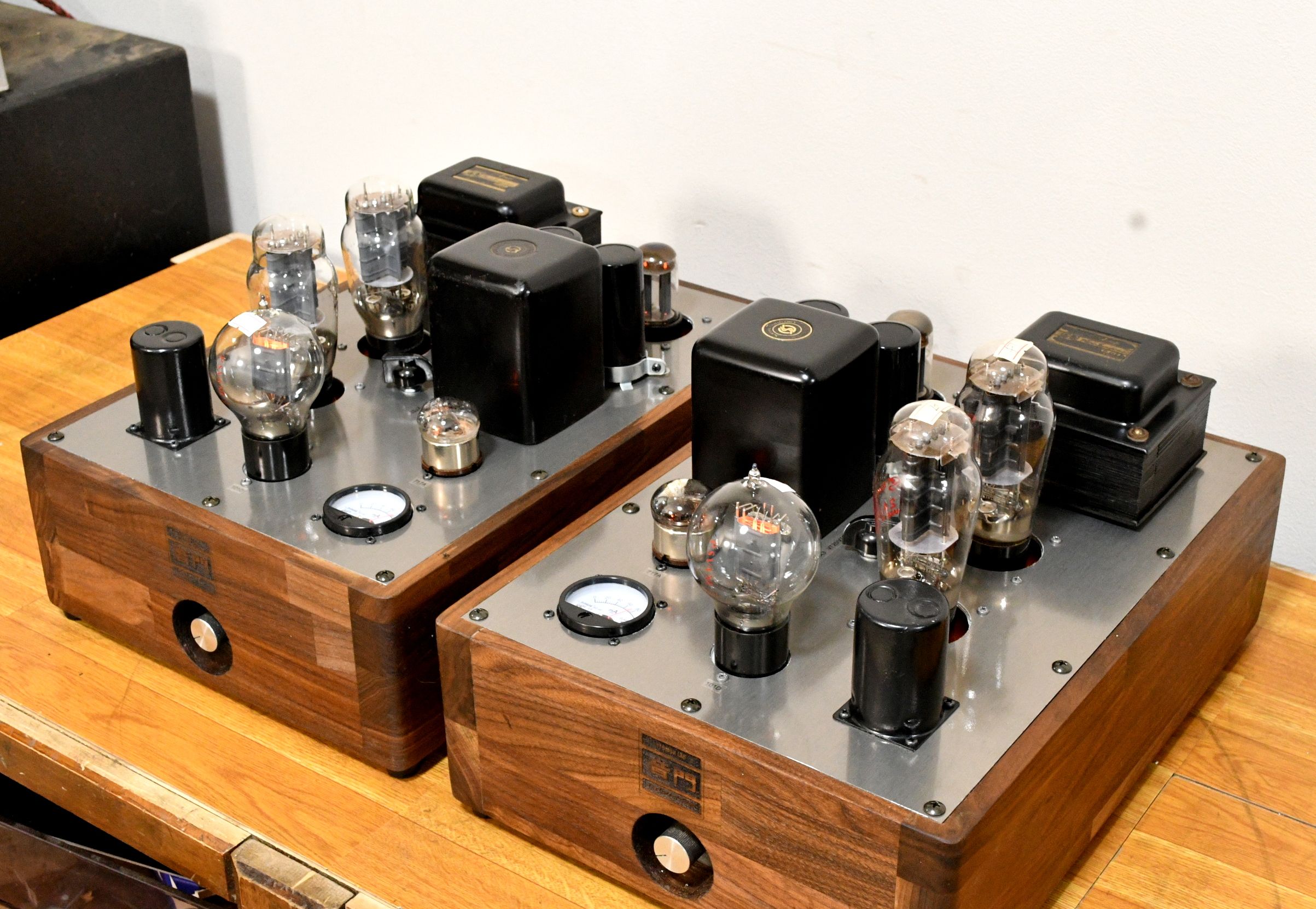

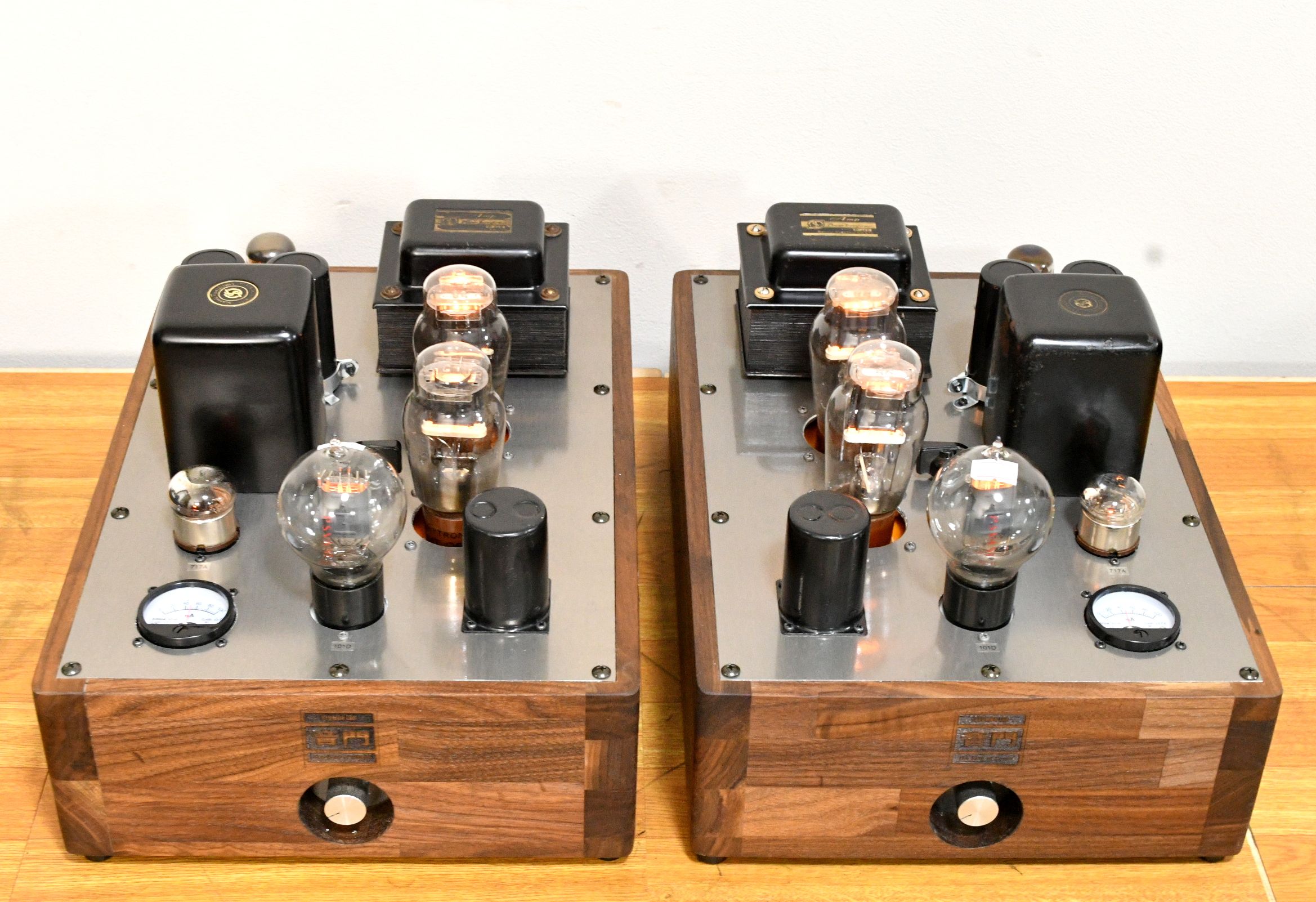

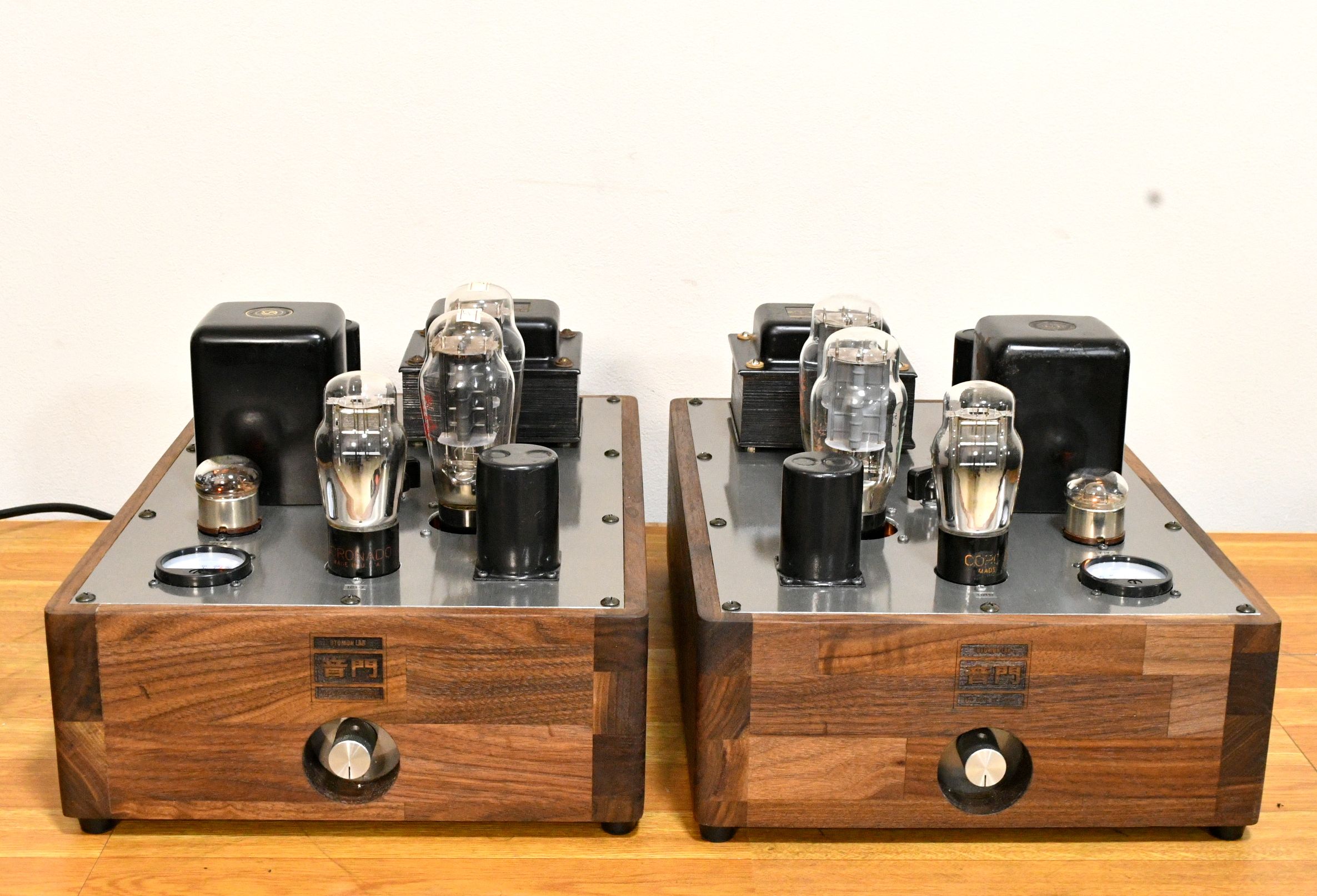

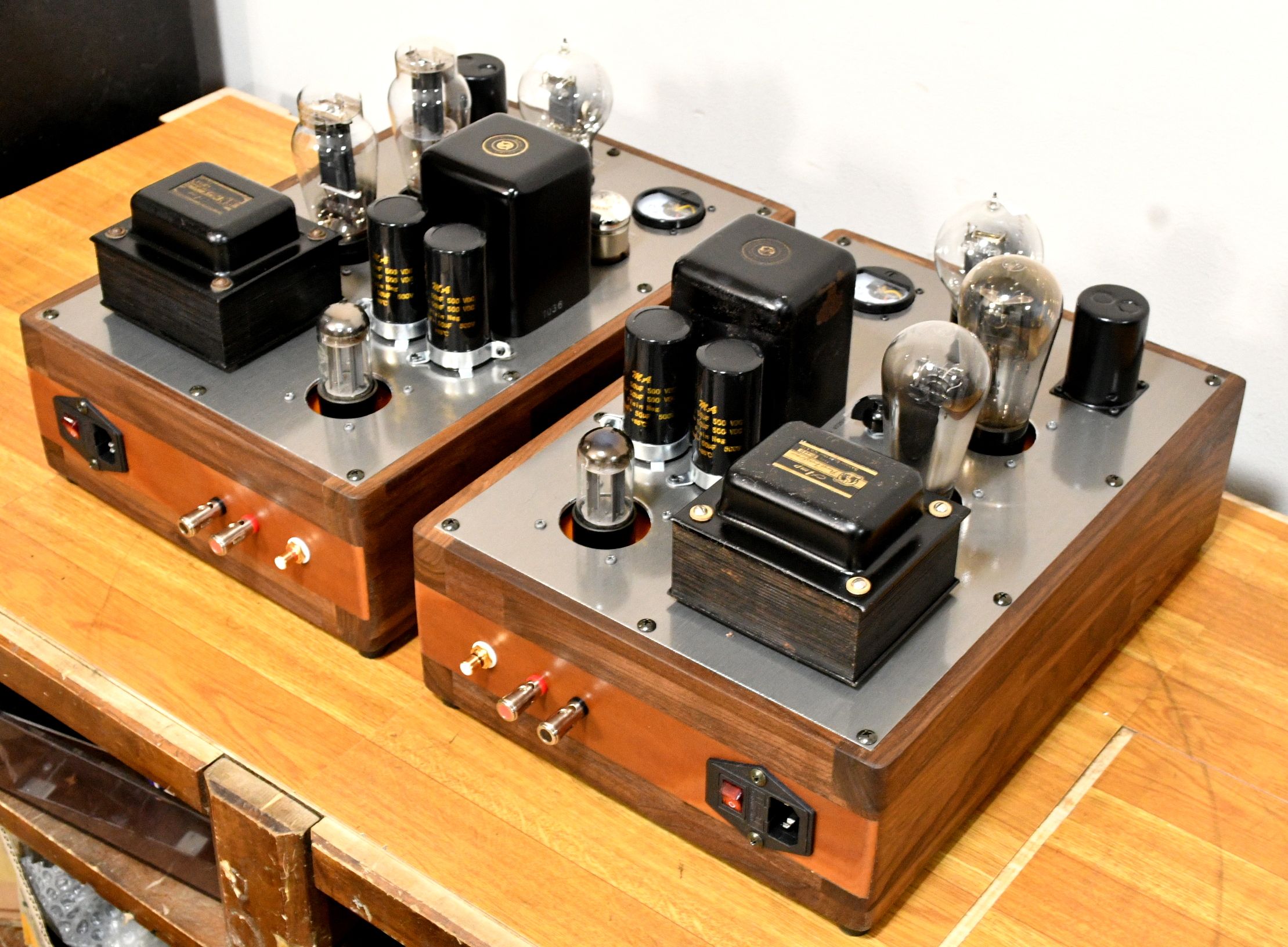

OTOMON LAB 2A3/45/VT52/VT-25/VT-62/10Y compatible SEPP monoblock tube amplifier drive stage 101/71A
Technical data is just an improve that item was tested carefully before sending to customer. While our products consistently achieve good to excellent technical figures compared to commercial alternatives, those numbers serve only to confirm that the design contains no engineering errors.
We could, in most cases, apply active techniques to make the specifications look even more impressive — but if doing so strips away originality or musical character, we will not do it. Our aim is to build equipment that sounds beautiful, not equipment that measures beautifully.
At OTOMON, music is judged by the ear and no instrument can replicate the human 's ear.
We could, in most cases, apply active techniques to make the specifications look even more impressive — but if doing so strips away originality or musical character, we will not do it. Our aim is to build equipment that sounds beautiful, not equipment that measures beautifully.
At OTOMON, music is judged by the ear and no instrument can replicate the human 's ear.
You can use 6 types of output tube with this amp, 2A3/45/VT52/VT-25/VT-62/10Y tubes. Heater for output tubes is AC heater.
You can order using specific transformer.
Very little NFB was adopted (-3db), for better performance, you can remove it if you want.
Max output power for 2A3 tube is 11W/channel (THD:5%)

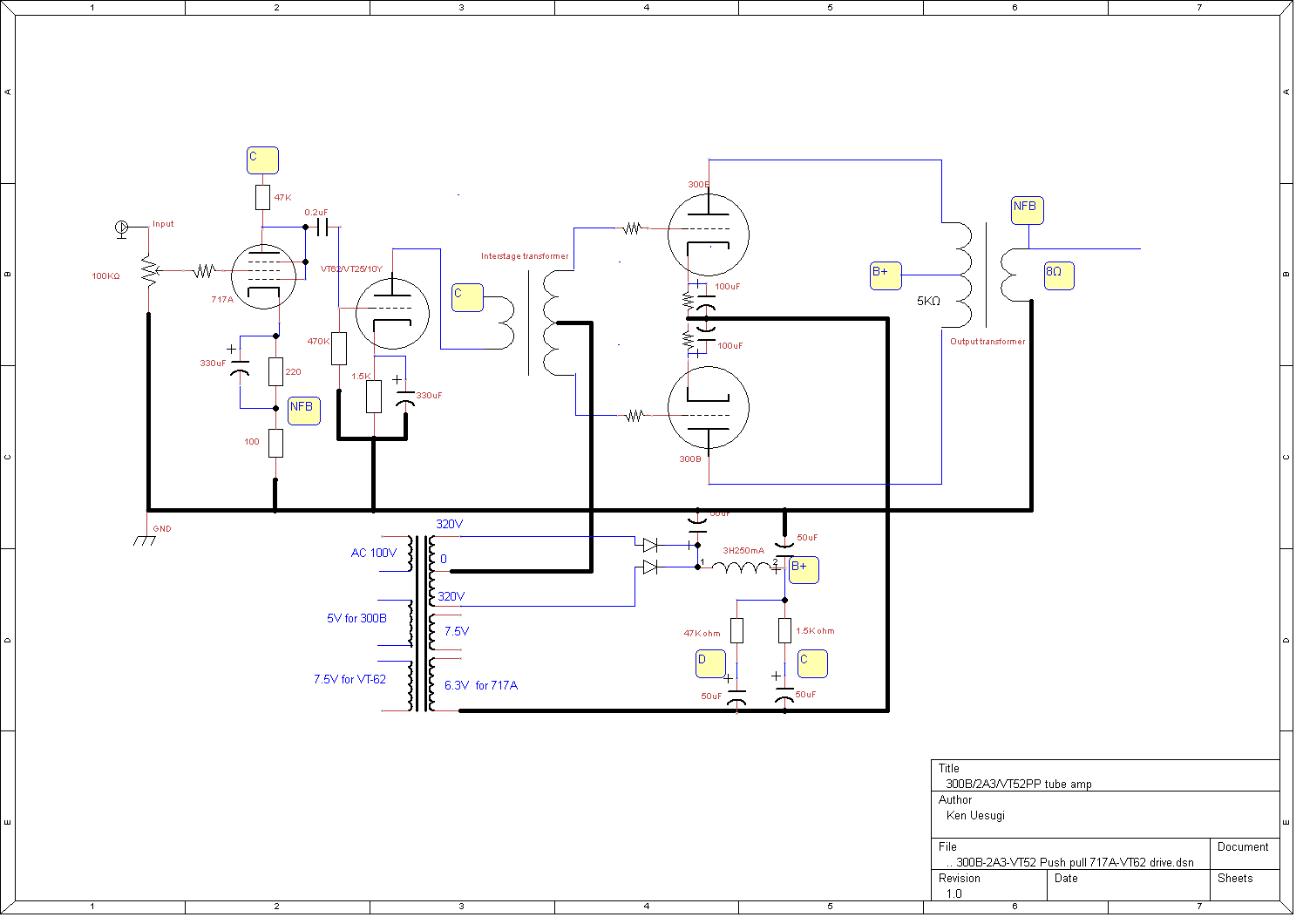

Prestage tube is 717A, driving tube is 101D, can be used 71A without any adjustment. Interstage transformer is adopted to drive power tubes.
You can order using specific transformer.
Very little NFB was adopted (-3db), for better performance, you can remove it if you want.
Max output power for 2A3 tube is 11W/channel (THD:5%)
Prestage tube is 717A, driving tube is 101D, can be used 71A without any adjustment. Interstage transformer is adopted to drive power tubes.
No tubes are included. This amplifier is working in class A.
Sound is very warm, dark and detail. Specification
Response frequency : 30Hz ~ 45KHz Hum level: 0.3mV
THD : 5% 11W/channel(2A3)
Sound is very warm, dark and detail. Specification
Response frequency : 30Hz ~ 45KHz Hum level: 0.3mV
THD : 5% 11W/channel(2A3)
$2,950.00
