Western Electric 91A type tube amplifier replica monoblock x 2
Technical data is just an improve that item was tested carefully before sending to customer. While our products consistently achieve good to excellent technical figures compared to commercial alternatives, those numbers serve only to confirm that the design contains no engineering errors.
We could, in most cases, apply active techniques to make the specifications look even more impressive — but if doing so strips away originality or musical character, we will not do it. Our aim is to build equipment that sounds beautiful, not equipment that measures beautifully.
At OTOMON, music is judged by the ear and no instrument can replicate the human 's ear.
We could, in most cases, apply active techniques to make the specifications look even more impressive — but if doing so strips away originality or musical character, we will not do it. Our aim is to build equipment that sounds beautiful, not equipment that measures beautifully.
At OTOMON, music is judged by the ear and no instrument can replicate the human 's ear.

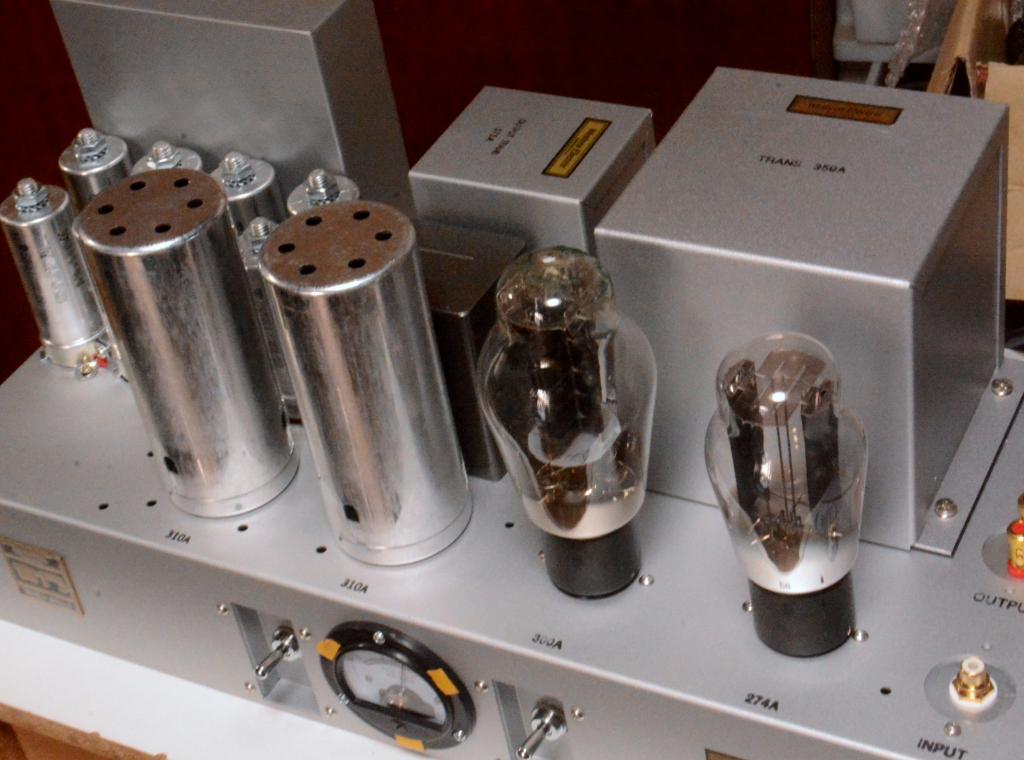

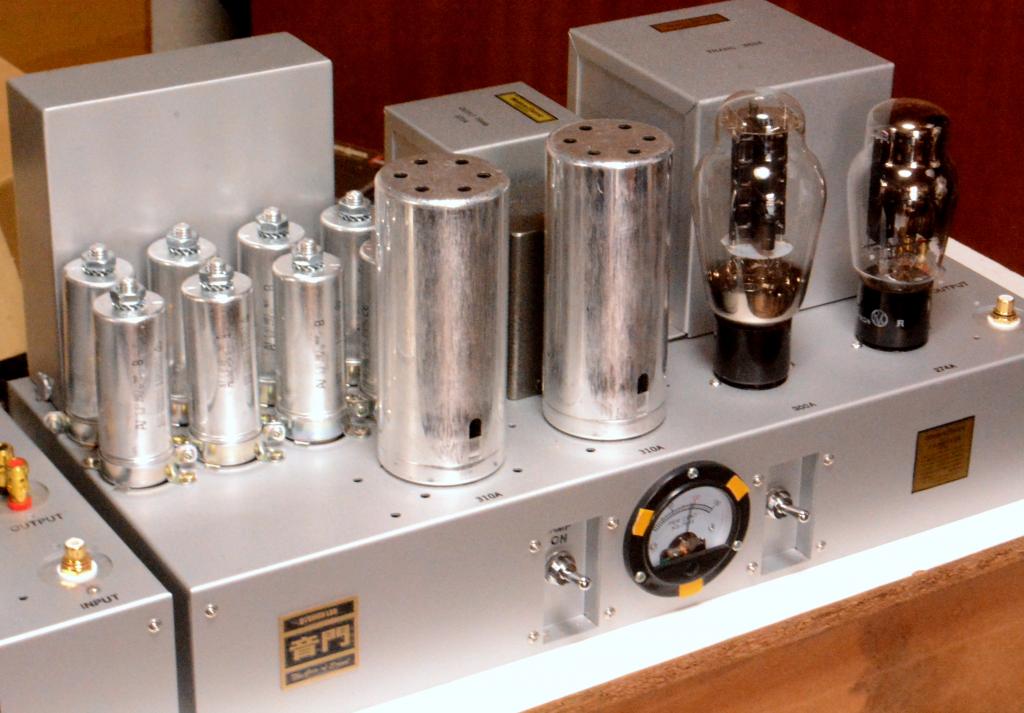

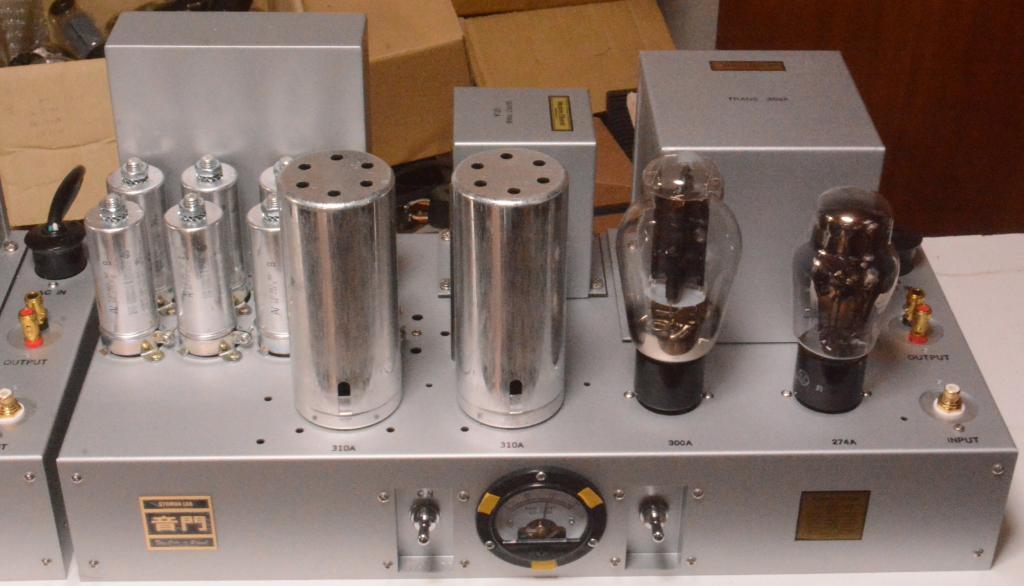

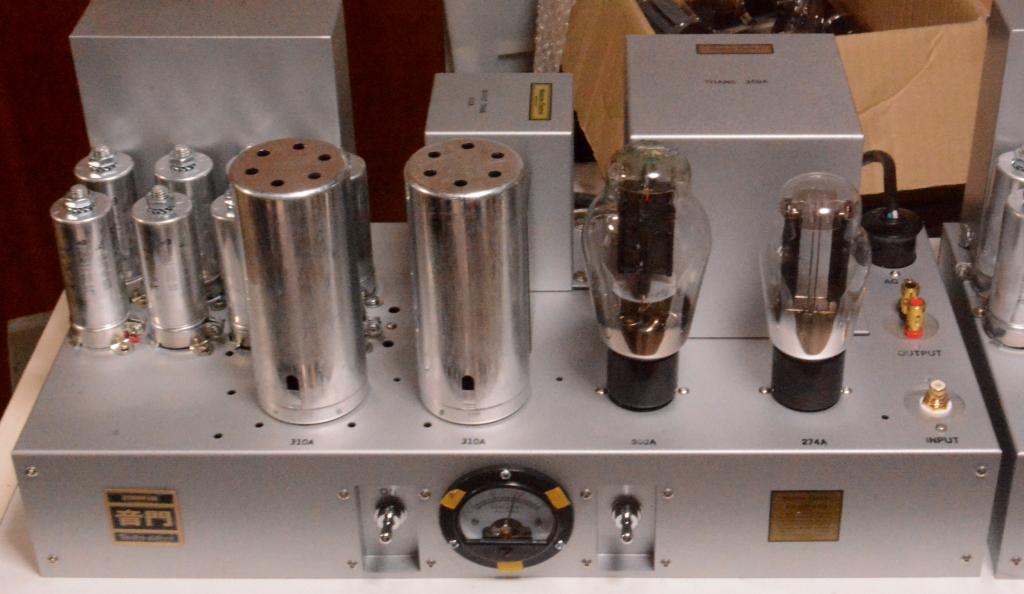

Western Electric 91A type amplifier replica version. manufactured based on original 30 year Western Electric WE91A tube amplifier. Output power 8W/channel.
In original schematic, there is no filter choke, it bring much hum noise as using with high sensitive speaker. This amplifier use filter choke to make the noise low at 1mV, It is very good number when 300B heater is AC direct heat. You can even lower the noise if using DC heater but to keep the sound of amplifier closest to original sound, I keep original schematic using AC heater. Compare with the orignal amp with hum level 5~7mV, it is very good level.
Wiring use America teflon silver plated wire.
Specification:
Response frequency : 16Hz ~ 45K Hz ( -1db)
Noise : 1mV
THD : 0.06% 1W 1% 13.5W
Output transformer use Western Electric transformer core and rewiring.
Tubes are not included.
In original schematic, there is no filter choke, it bring much hum noise as using with high sensitive speaker. This amplifier use filter choke to make the noise low at 1mV, It is very good number when 300B heater is AC direct heat. You can even lower the noise if using DC heater but to keep the sound of amplifier closest to original sound, I keep original schematic using AC heater. Compare with the orignal amp with hum level 5~7mV, it is very good level.
Wiring use America teflon silver plated wire.
Specification:
Response frequency : 16Hz ~ 45K Hz ( -1db)
Noise : 1mV
THD : 0.06% 1W 1% 13.5W
Output transformer use Western Electric transformer core and rewiring.
Tubes are not included.
$16,000.00
